fix(mobile): size a chat image's frame before its bytes arrive #10199 · pingdotgg/t3code

Problem

An assistant image on mobile went through three sizes: full width on first render, the measured width after its own onLayout, then the decoded size (up to 480px tall for a portrait screenshot). Each step changed the row's height after LegendList had already placed the rows below it. That's the "scroll area cut off under the composer" and "tool calls render under the media" reports.

Fix

ThreadFeed hands markdown its content width through MarkdownImageAvailableWidthContext, so the placeholder is the right width on the first render instead of after onLayout. The context is an upper bound: a list item or blockquote indents its column, and the measured width takes over once known.

ThreadMarkdownImage uses the server's imageDimensions (#10198) to size the frame exactly before the first byte arrives. The decoded size still wins once it exists, so a wrong hint can never stick. An image the server couldn't measure keeps the 16:9 slot.

Padding constants use the mobile 14px rem (px-3.5 on the bubble, px-1 on assistant rows).

Evidence

iPhone 17 Pro simulator on macmini, seeded thread with landscape/portrait/wide screenshots, asset responses delayed 2.5 s through a proxy so the loading phase is observable. Frames captured every ~100 ms during thread open.

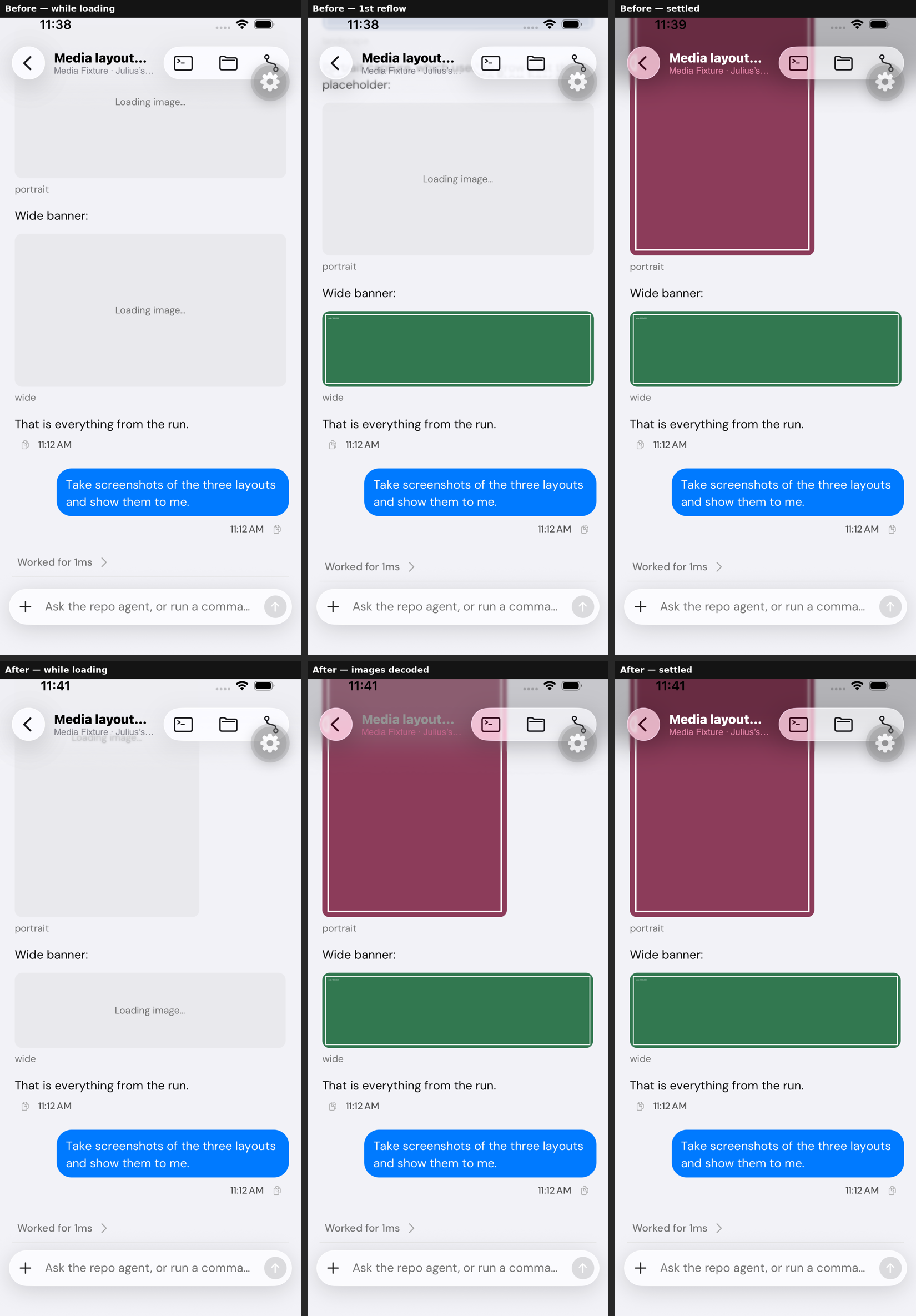

Before (main): portrait placeholder is 16:9; when the image decodes the row grows ~250px and everything below reflows. After: the frame is portrait from first paint; rows below never move.

Verification

apps/mobile typecheck clean; lint on changed files clean (pre-existing effect warnings unchanged).

Simulator pass above.

Model: Claude Fable 5 · Harness: Claude Code in T3 Code

🤖 Generated with Claude Code

Note

Size chat image frames before bytes arrive in mobile thread feed

ThreadFeed derives a markdown content width from the centered content width and row padding, then passes it to renderFeedEntry so user and assistant markdown rows have a width estimate before their own onLayout fires.
ThreadMarkdownImage combines the feed-provided width with a server-supplied image size to render an aspect-ratio frame before decode; after decode, decoded dimensions take precedence and the measured layout width constrains the estimate.
readJpeg now skips later APP1 segments once a rotated EXIF orientation is detected, and IMAGE_DIMENSIONS_HEADER_BYTES is raised from 64 KiB to 256 KiB to reach JPEG frame headers after multiple metadata segments.
Risk: in ThreadMarkdownImageView the frame resolves only when both a source size and a positive available width exist, otherwise it falls back to the placeholder frame; rows lacking a width context or unknown image size may keep the placeholder longer.

^{Macroscope summarized cced7aa.}

Ggithub-actionsBotSep 5, 2026

Thread transfer impact

✅ Thread transfer remains within every enforced ceiling.

ℹ️ No successful main baseline artifact is available yet. This run establishes the initial measurement.

Provider	Metric	Main baseline	This PR	Impact	PR ceiling
Codex	Total thread wire	—	13.5 KiB	—	15.1 KiB	✅
Codex	Thread snapshot wire	—	7.0 KiB	—	7.3 KiB	✅
Codex	Live turn WebSocket wire	—	6.5 KiB	—	7.8 KiB	✅
Codex	Live turn WebSocket decoded	—	57.0 KiB	—	66.4 KiB	✅
Codex	Live turn messages	—	8	—	21	✅
Claude	Total thread wire	—	13.6 KiB	—	15.1 KiB	✅
Claude	Thread snapshot wire	—	7.0 KiB	—	7.3 KiB	✅
Claude	Live turn WebSocket wire	—	6.5 KiB	—	7.8 KiB	✅
Claude	Live turn WebSocket decoded	—	57.9 KiB	—	66.4 KiB	✅
Claude	Live turn messages	—	10	—	21	✅

Baseline: unavailable · PR result: cced7aa · Source CI: success

Scenario and decoded snapshot size

10 historical turns, 5 command tools per turn, 878.9 KiB retained MCP result per historical turn, and a 1.05 MiB retained result in the measured turn.

Codex decoded thread snapshot: 113.8 KiB
Claude decoded thread snapshot: 114.5 KiB

Updated in place by a trusted workflow. PR artifacts are strictly validated and never executed.

MmacroscopeappBotSep 5, 2026

Approvability

Verdict: Approved at a68cf3b

Macroscope's review found this PR approvable — This is a focused mobile layout bug fix that stabilizes existing markdown image frames using the feed width and already-supported image metadata. Its runtime impact is confined to image sizing and row layout, with no new capability, schema change, deployment change, or static-analysis override.

No code changes detected at cced7aa. Prior analysis still applies.

^{You can add or adjust custom eligibility rules. Learn more.}

MmacroscopeappBotapproved these changesSep 5, 2026

Added 2 commitsSep 5, 2026

fix(mobile): size a chat image's frame before its bytes arrive3aad878
fix(mobile): treat the feed width as a bound and let the decoded size wincced7aa
