fix(server): preview_open reports a tab it shows as visible#26055

open4

main

fix/issue-17015

View on GitHubTwo-way sync enabledPR last imported 2d ago

Problem

preview_open with open: true / show: true asks the client to show the tab and then returns at once, before the client's Browser panel has attached its stream. So it reports visible: false for a tab that is about to be on screen, and the agent tells the user the browser is hidden. Reproduced on main (36d4d711b7) with the web client: an agent's preview_open({"url":"https://example.org","open":true,"reuseExistingTab":false}) returned visible: false, and the preview_status call right after it returned visible: true with the panel on screen. visible also had no description saying what it measures.

Change

After an explicit open: true / show: true reveal, preview_open waits up to 1 s for a client viewer to attach before it builds its status. It stops as soon as one attaches, never runs past the request's deadline, and overlaps the page-load wait. Tabs that already have a viewer and desktop-rendered tabs (which never attach a viewer) do not wait. A tab no client shows still returns visible: false after the bound.
visible (top level and in tabs[]) gets a schema description: true while any client streams this tab's live view; the desktop app's own webview does not count.

Scope and approval

Fixes pingdotgg/t3code#17015

Triaged via the automated issue flow.

Verification

New test in apps/server/src/preview/ServerBrowser.test.ts, "preview_open reports a tab it shows as visible once the client attaches": a simulated client attaches its viewer asynchronously after it sees the reveal event. Against main's ServerBrowser.ts it fails 5 of 5 (expected false to be true); on this branch it passes. ServerBrowser.test.ts 30/30.
vp run check:changed: format, lint, knip, graphql, typecheck (32 packages) and tests pass.
Real app: web dev server per side on a fresh database, the dev server's own agent calling the preview tools; T3 preview Chromium 156 on Linux, 1280×800 fill, light theme, no device emulation, DPR 2. R1 is the fix; R2 shows the cost (an explicit open no client shows returns about 1 s later, still false; interval from shell timestamps around the call, approximate: 152 ms before, 1169 ms after); R3 (open unset) and R4 (open: false) do not wait.

Evidence

Captured at 0b70531b31; the PR head adds only a merge of main, which does not touch the changed files. Each side ran its own agent on a fresh database, so thread titles, tab ids, timestamps and sidebar contents differ between Before and After, and the diff images light up on those. Read the visible values in the tool results: they are the evidence. On main the immediate preview_status in R1 and R3 also read false (the client attached even later than in the first reproduction). R2 After repeats the prompt in the same thread after a first attempt that included tool discovery; the earlier tab appears in its tabs list.

Exact prompts and retry notes. Environment for every cell: web, 1280×800 fill viewport, light theme; Chromium 156 / Linux, no emulation, DPR 2, scale 1, root font 16 px. Diff0 uses 0% fuzz; DiffT uses 5% fuzz. Both amplify detected changes to saturated red on white.

R1 — 1280×800, light

Frame	Before 36d4d711b7	After 0b70531b31	Diff0	DiffT

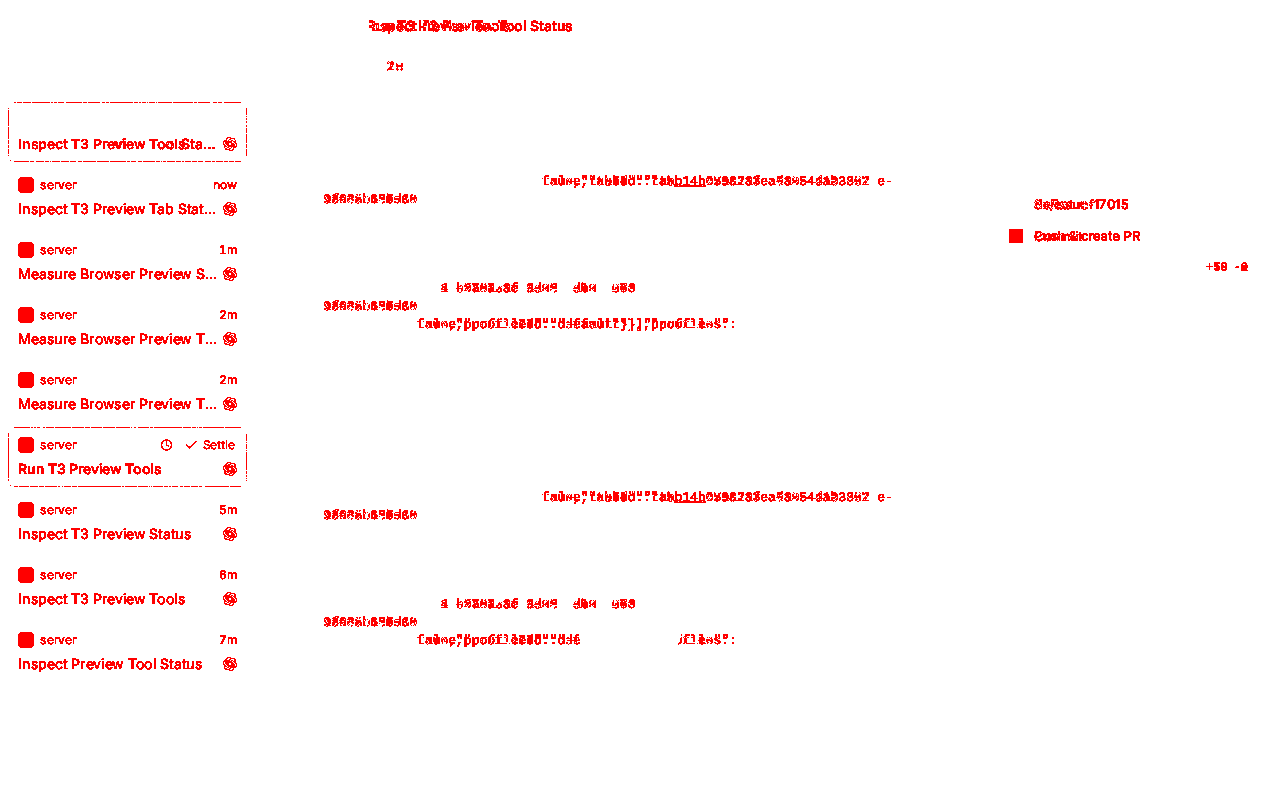

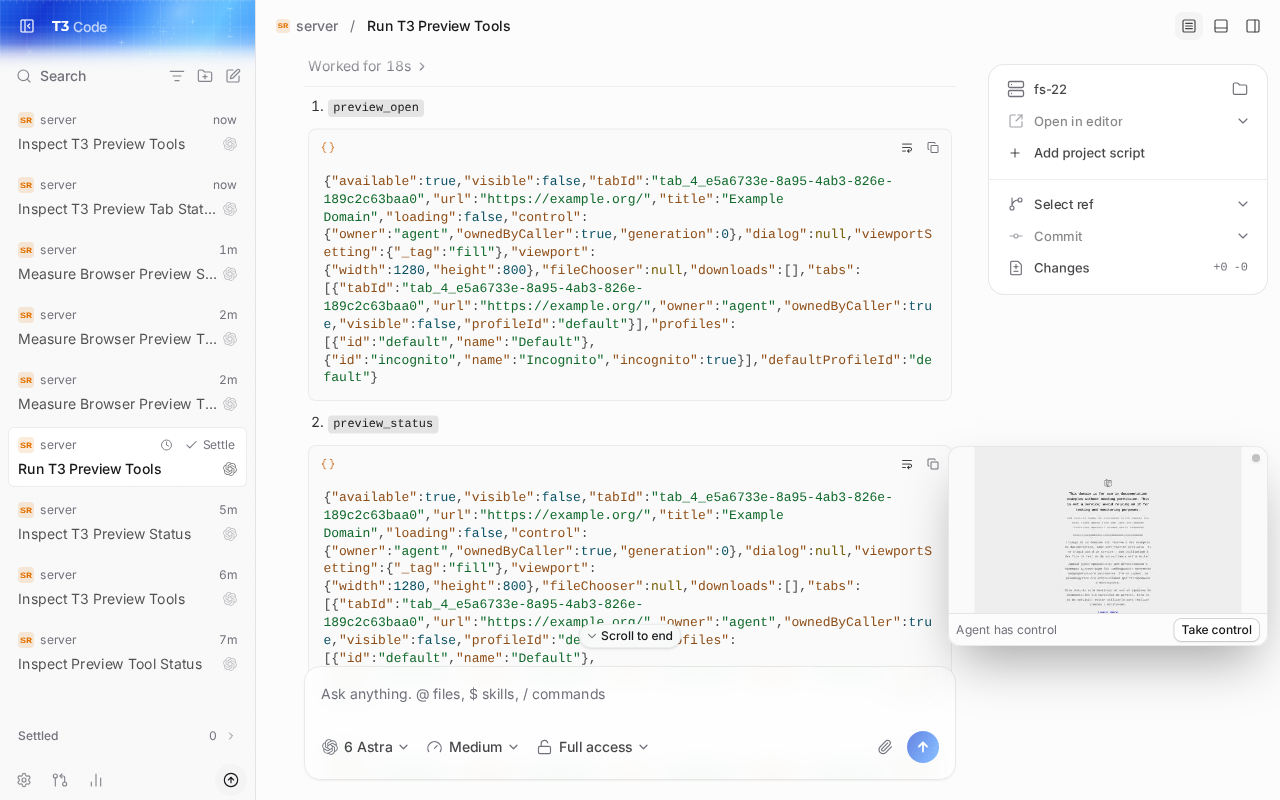

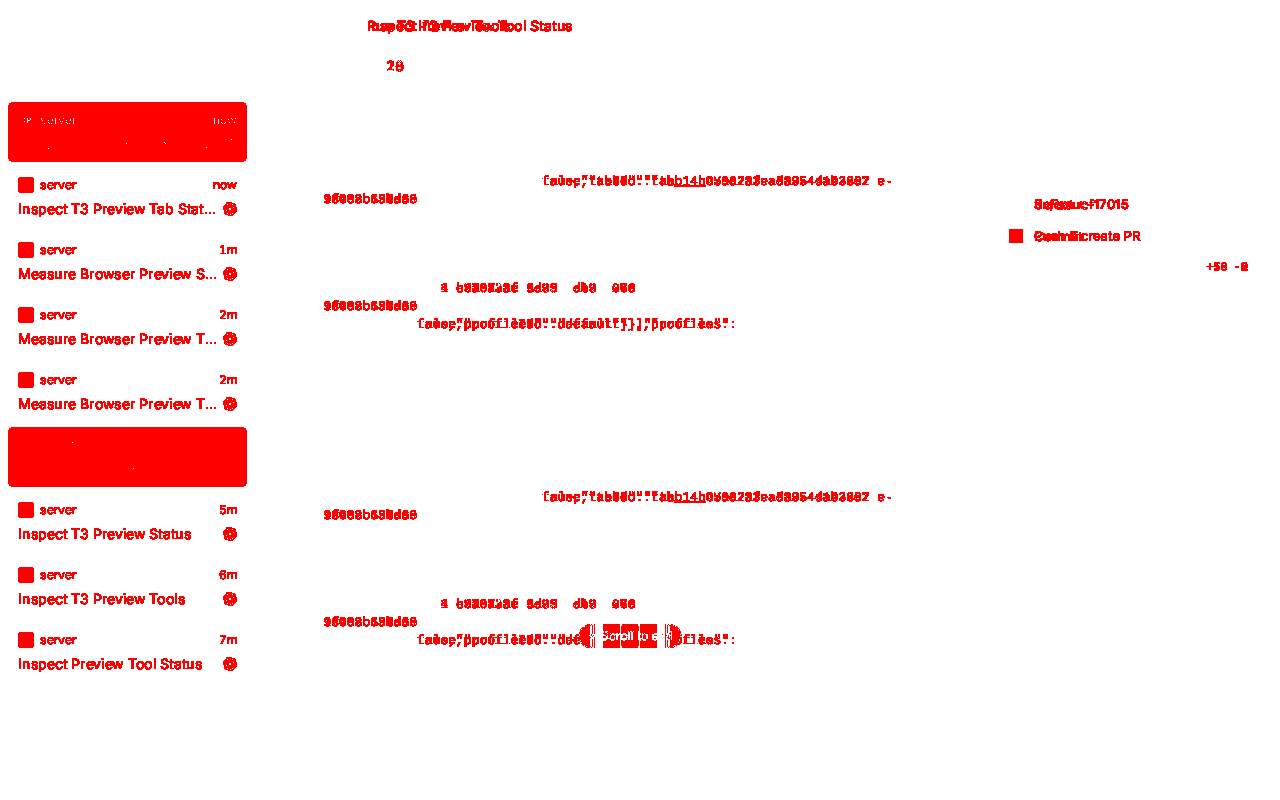

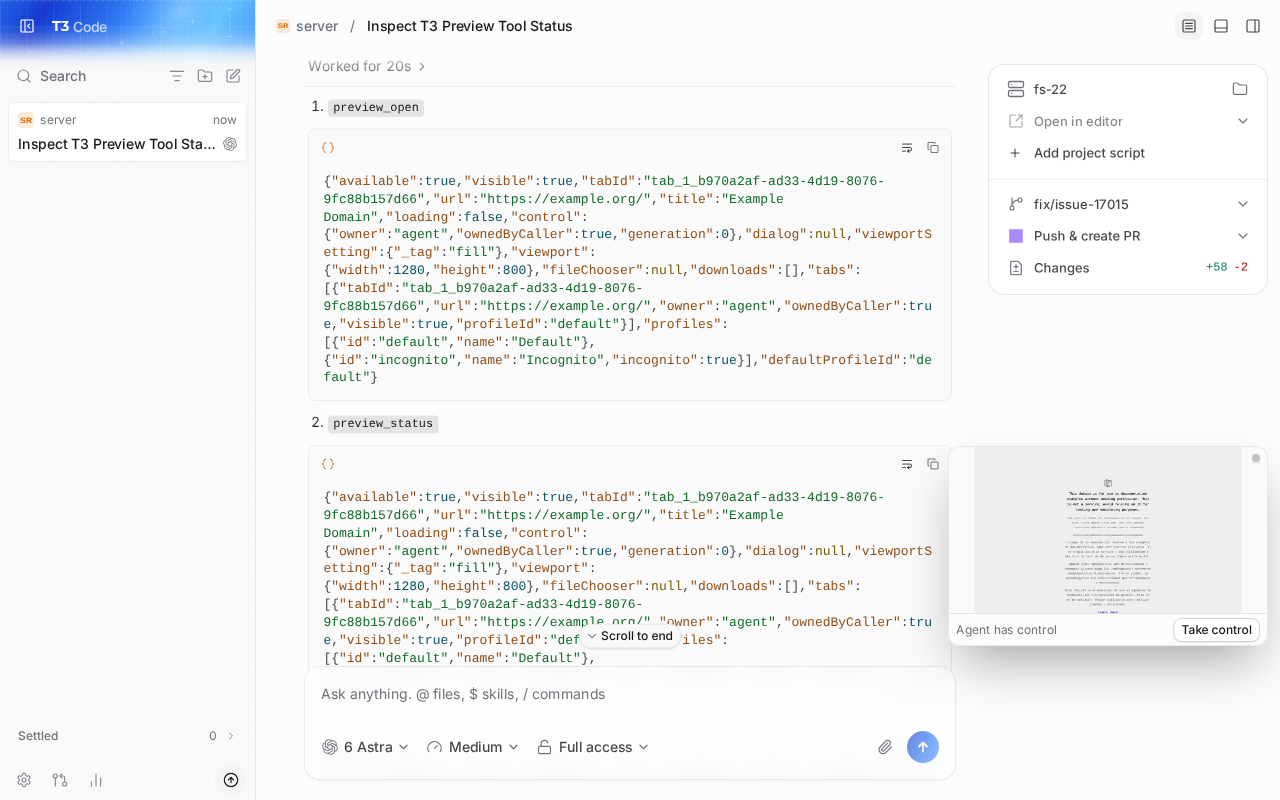

open	R1 open Before	R1 open After	R1 open zero threshold amplified diff	R1 open 5 percent fuzz diff

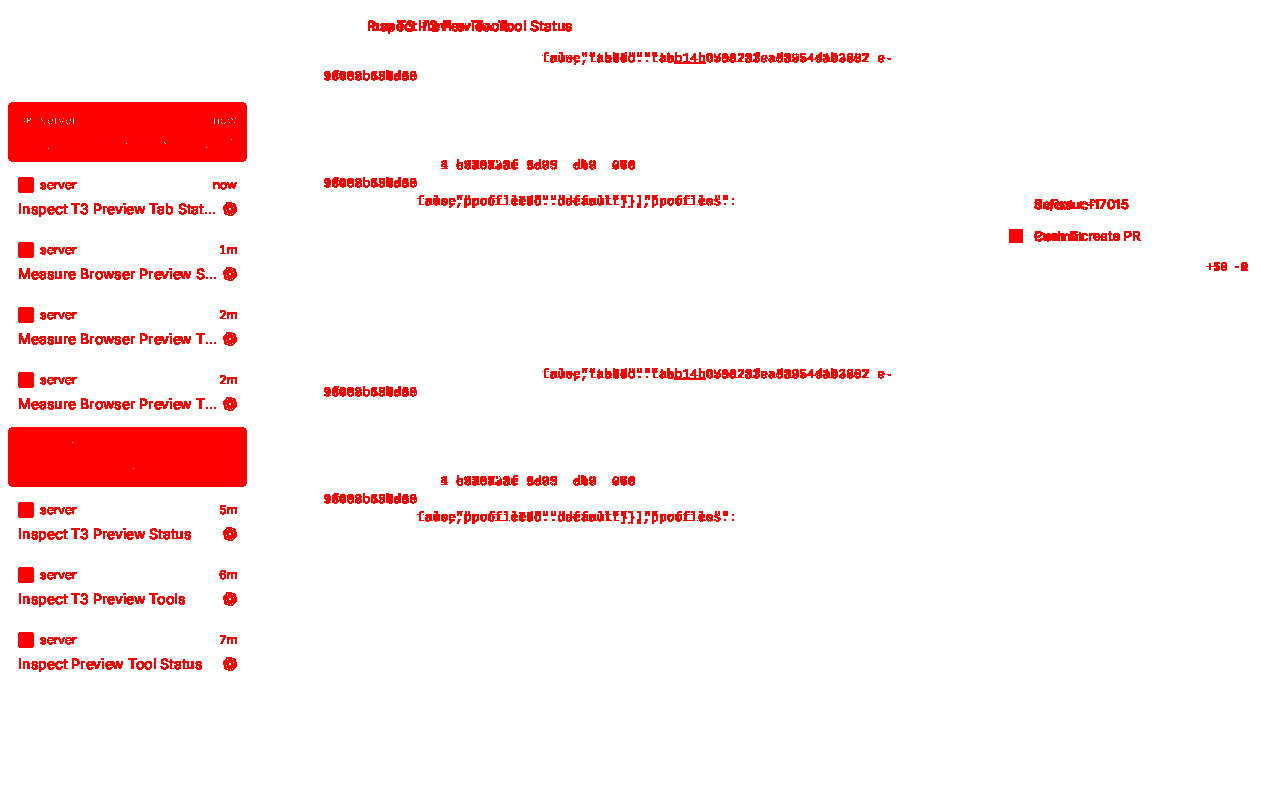

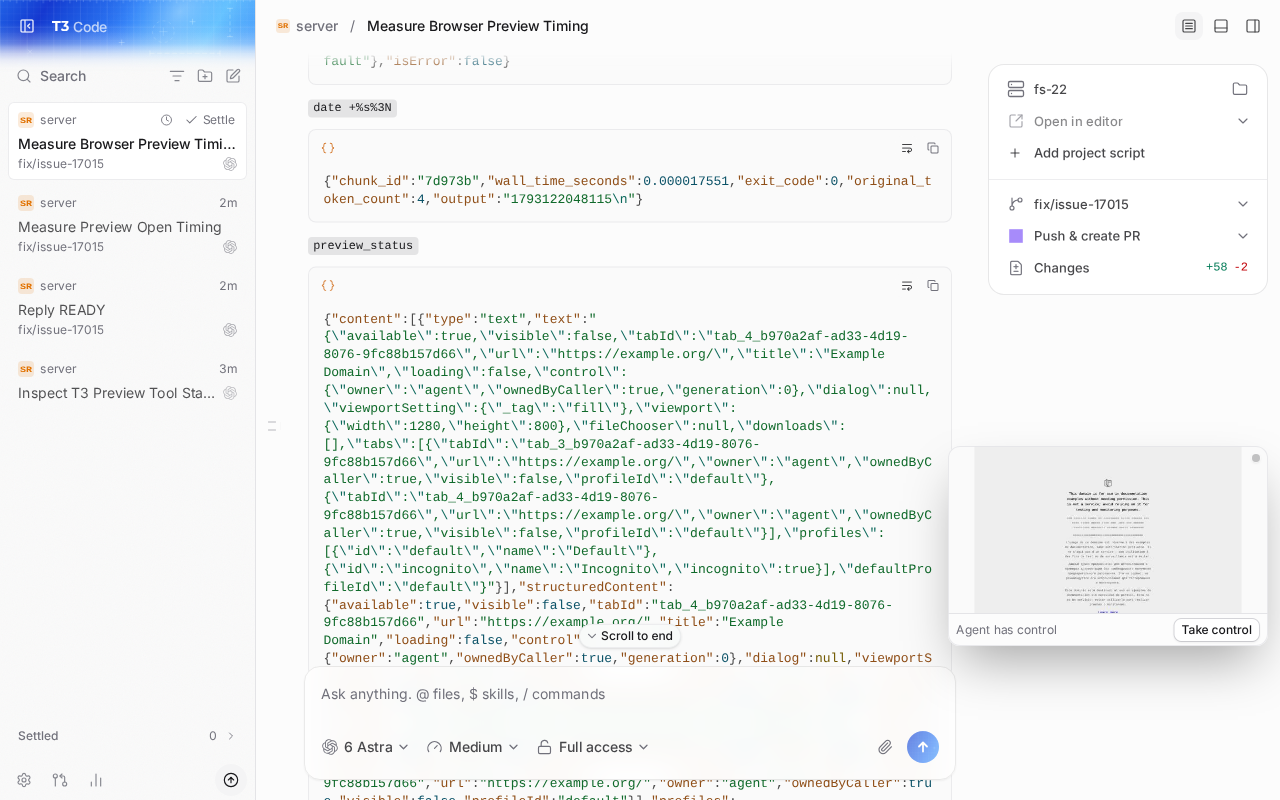

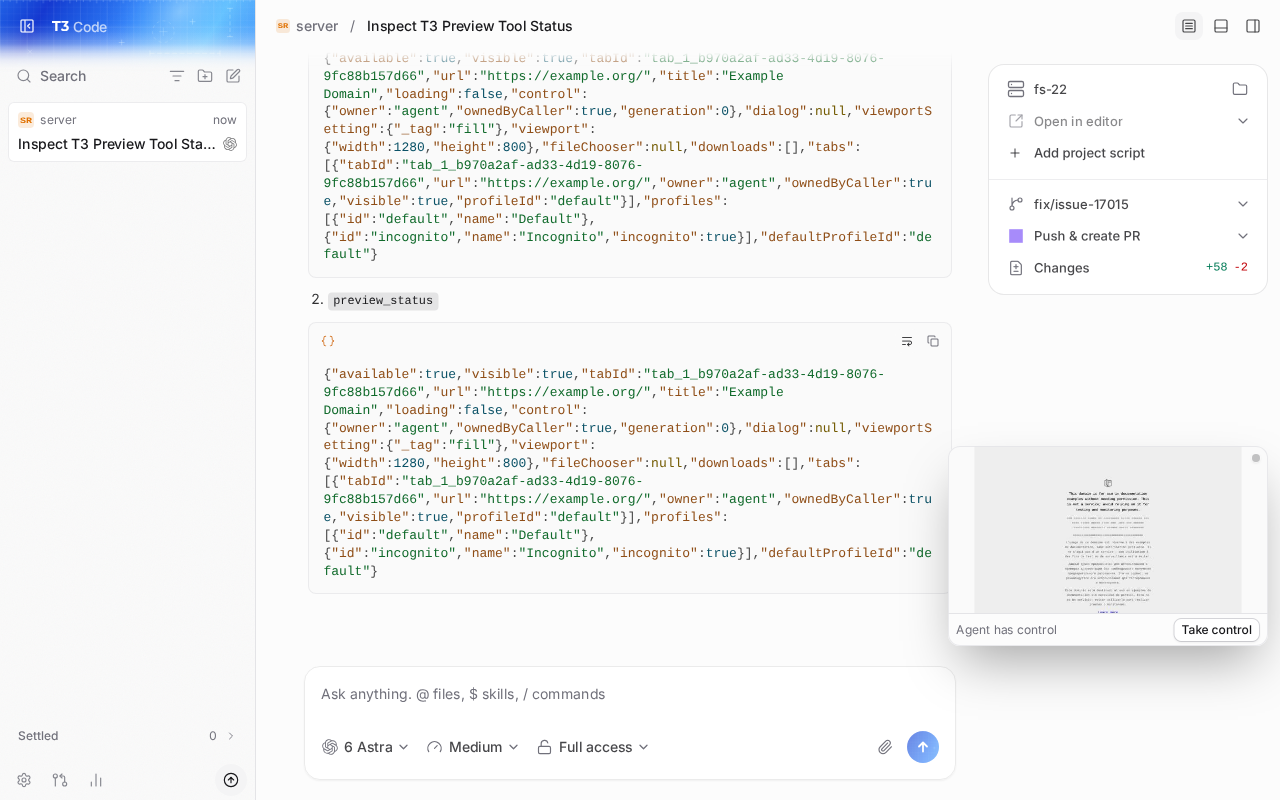

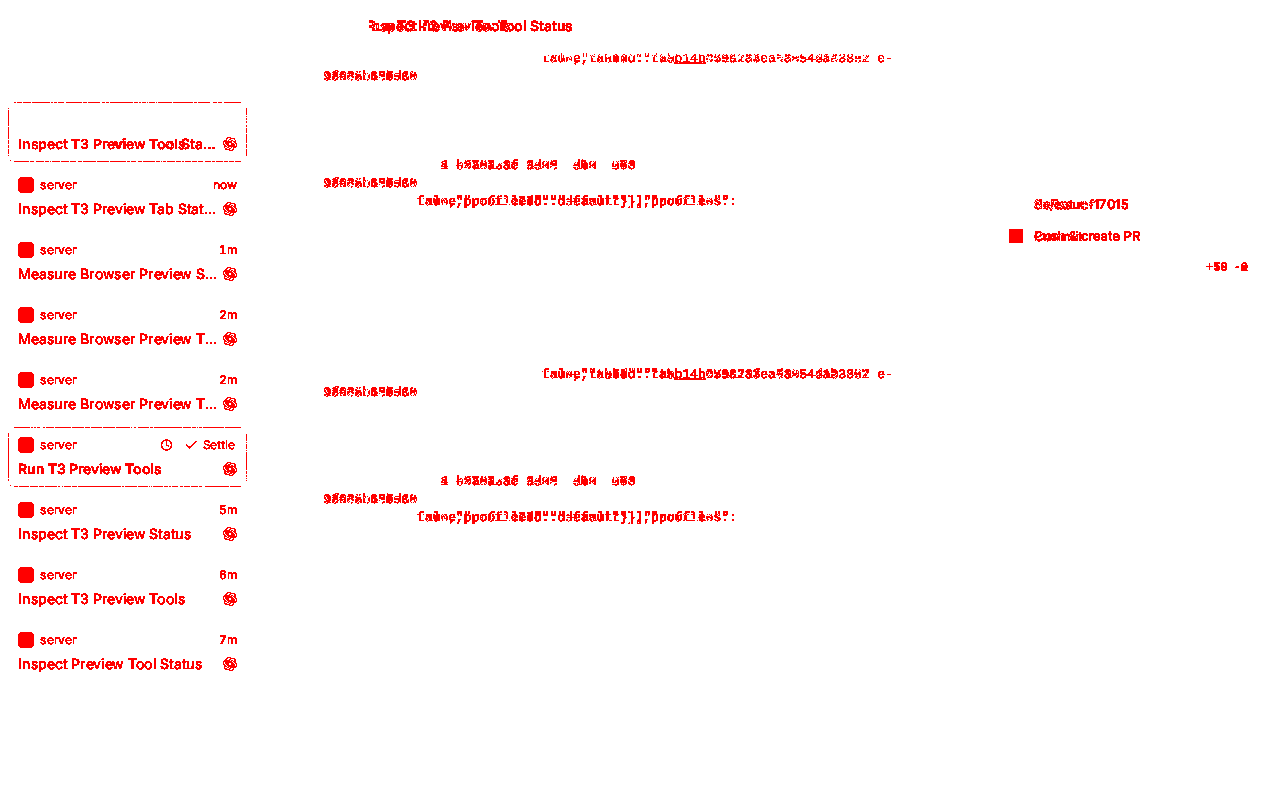

status	R1 status Before	R1 status After	R1 status zero threshold amplified diff	R1 status 5 percent fuzz diff

R2 — 1280×800, light

Frame	Before 36d4d711b7	After 0b70531b31	Diff0	DiffT

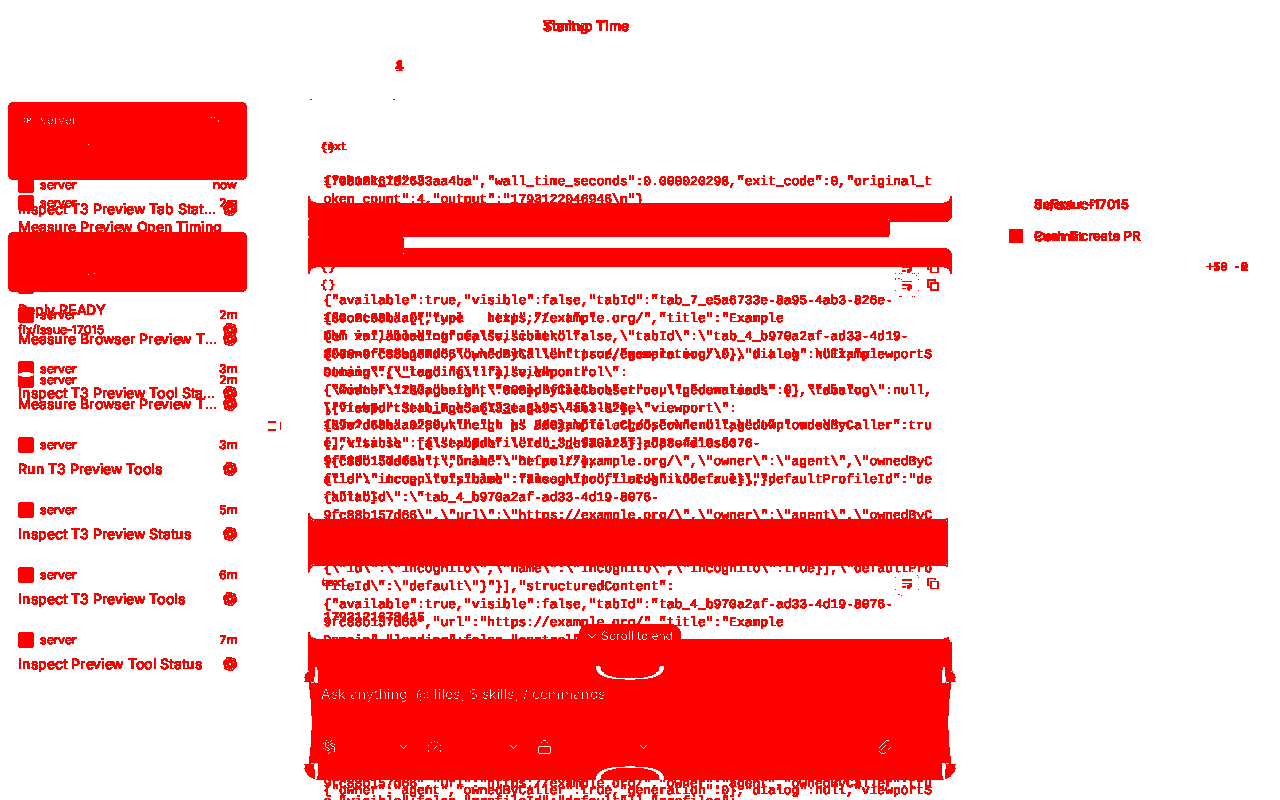

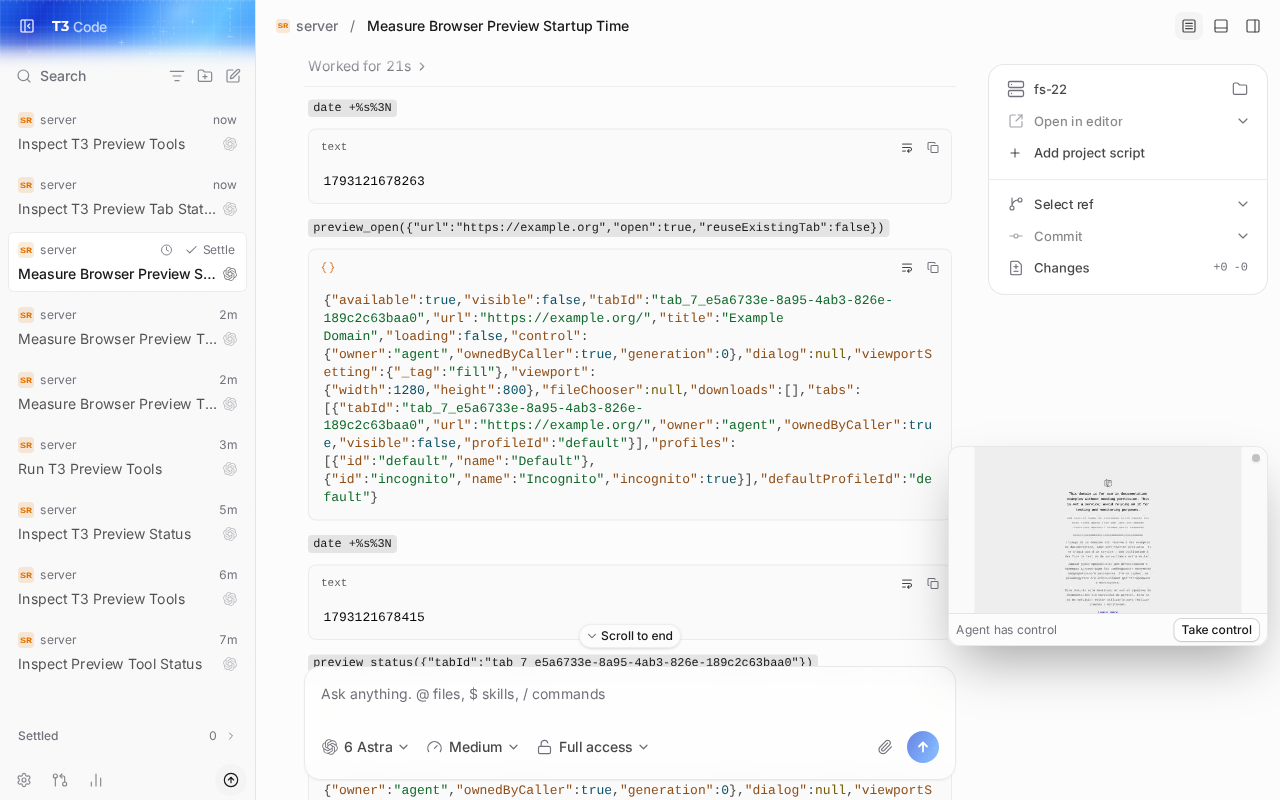

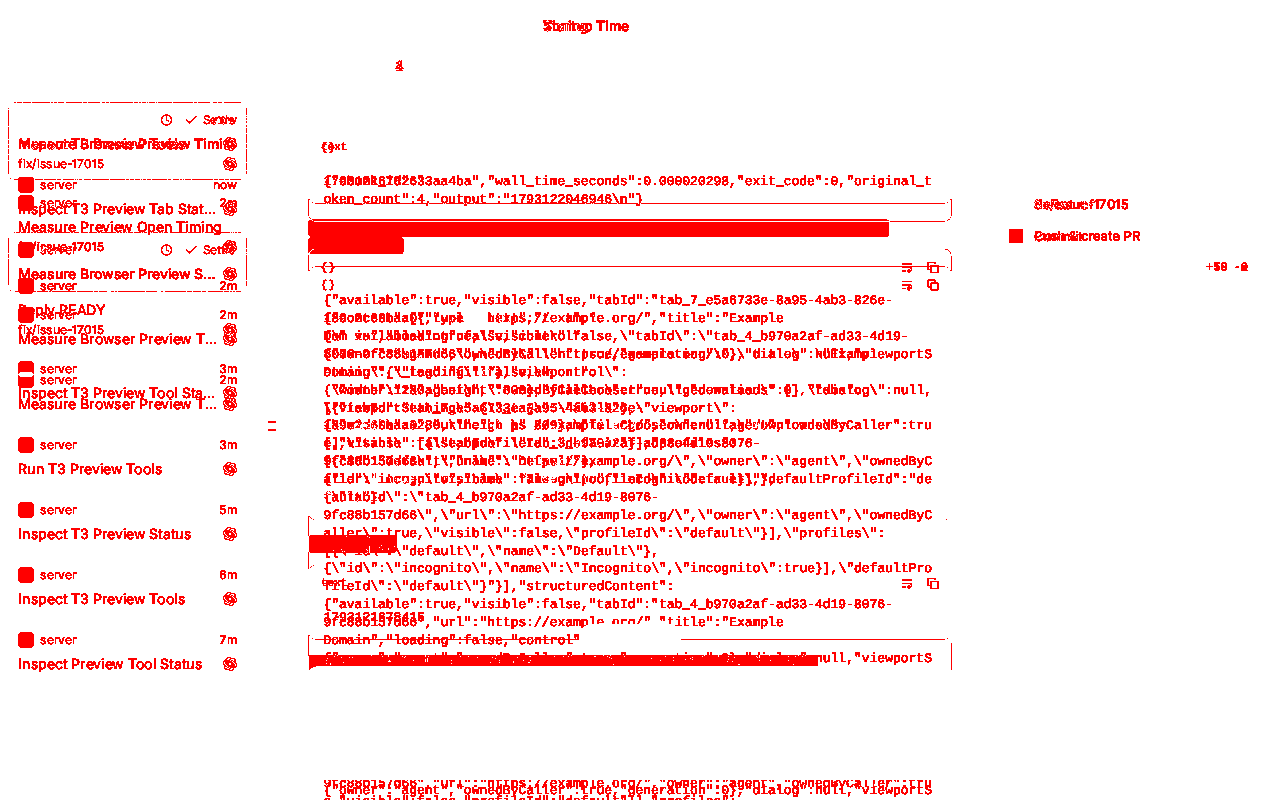

open	R2 open Before	R2 open After	R2 open zero threshold amplified diff	R2 open 5 percent fuzz diff

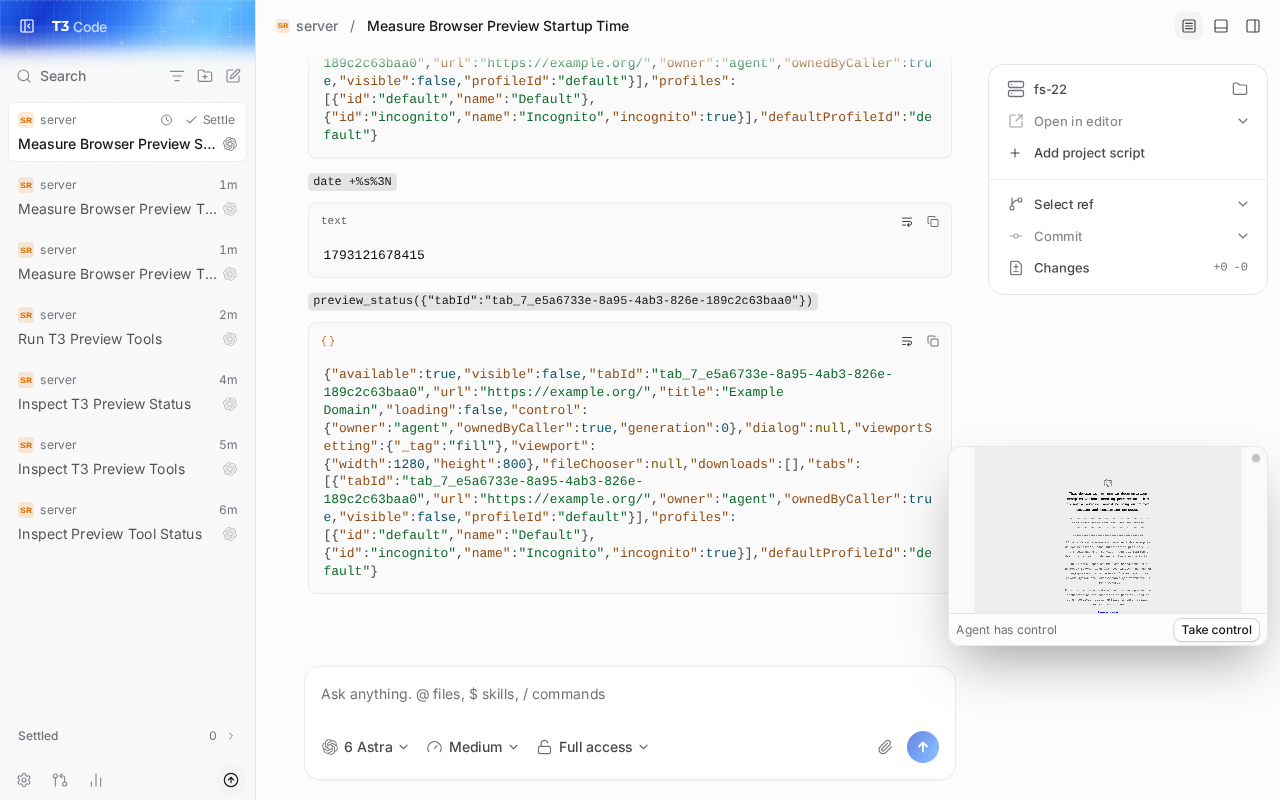

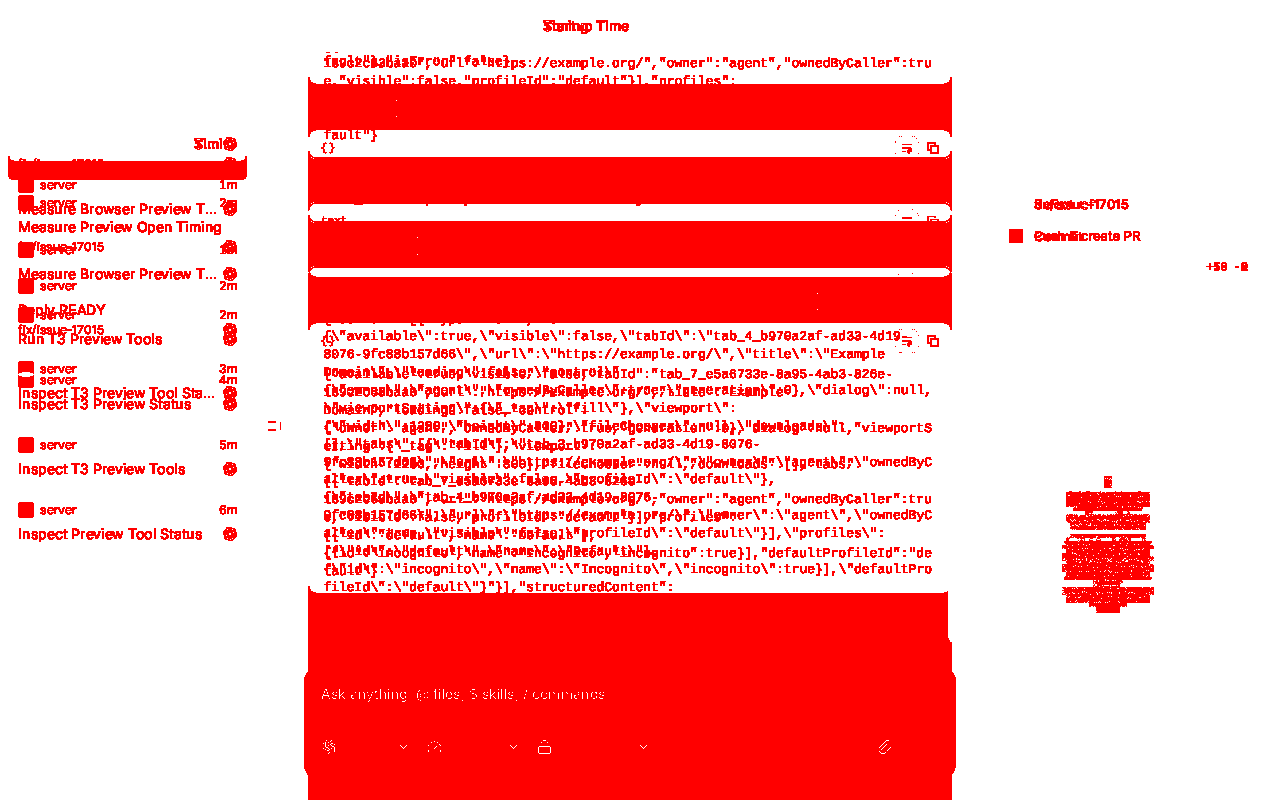

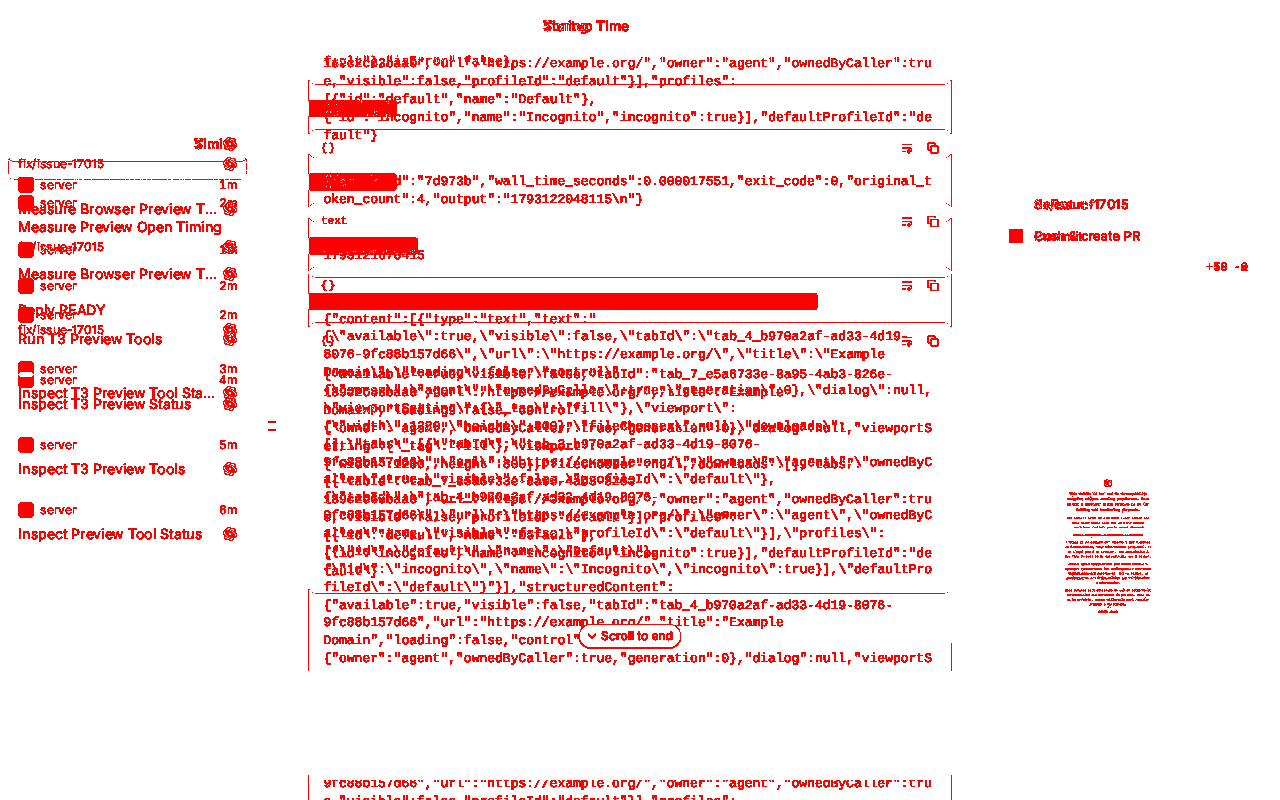

status	R2 status Before	R2 status After	R2 status zero threshold amplified diff	R2 status 5 percent fuzz diff

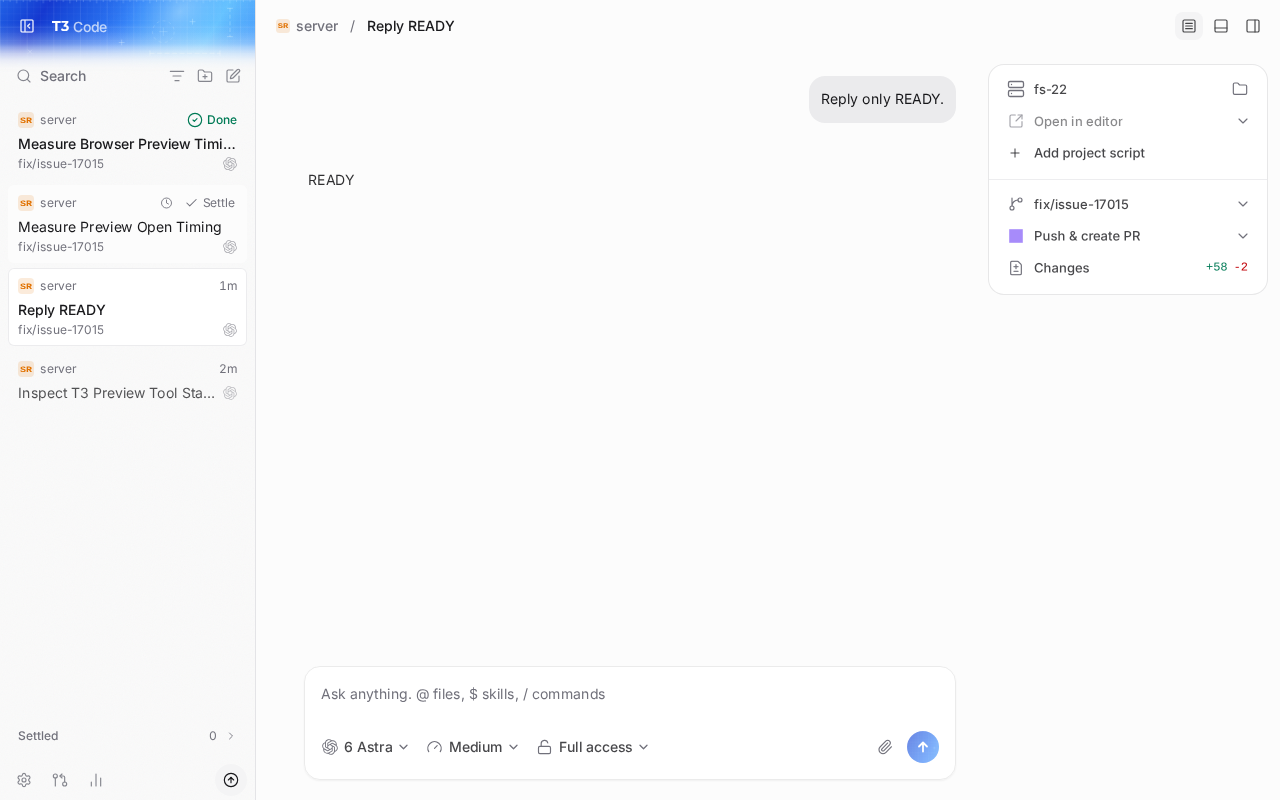

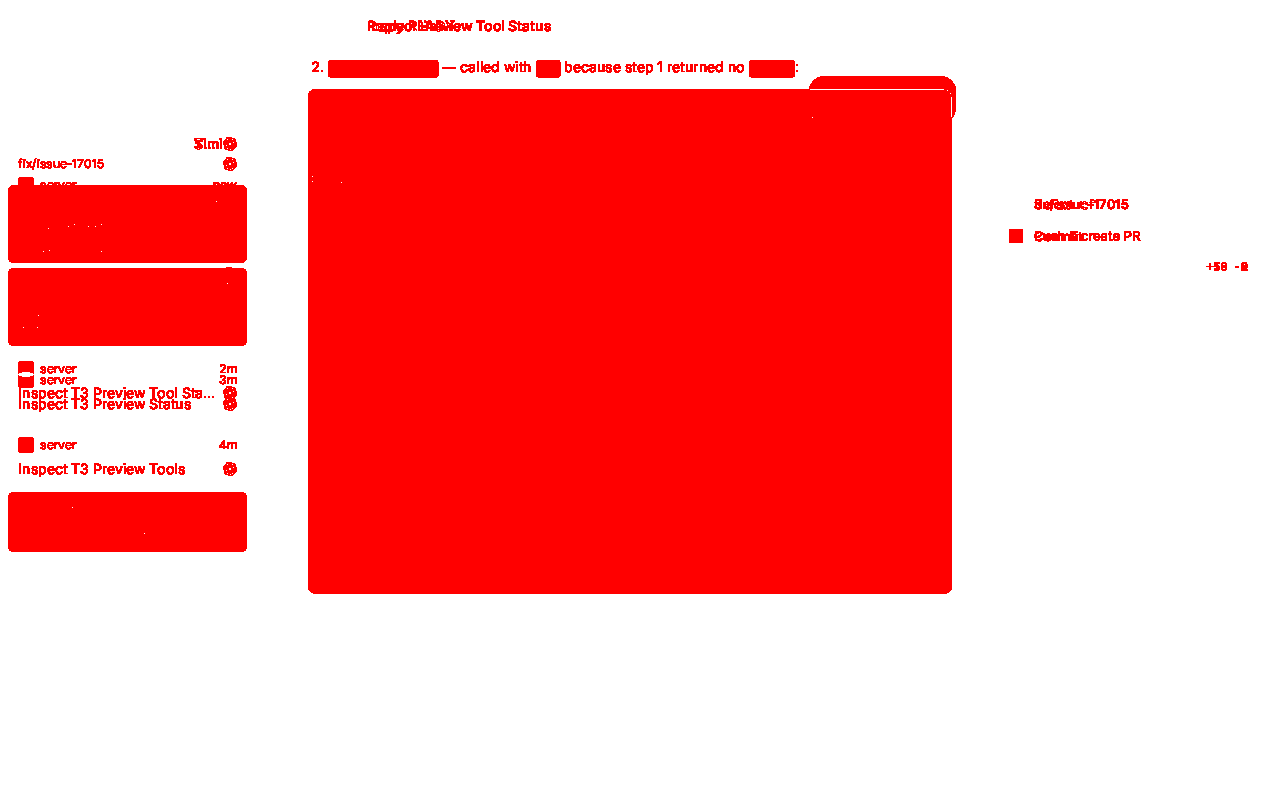

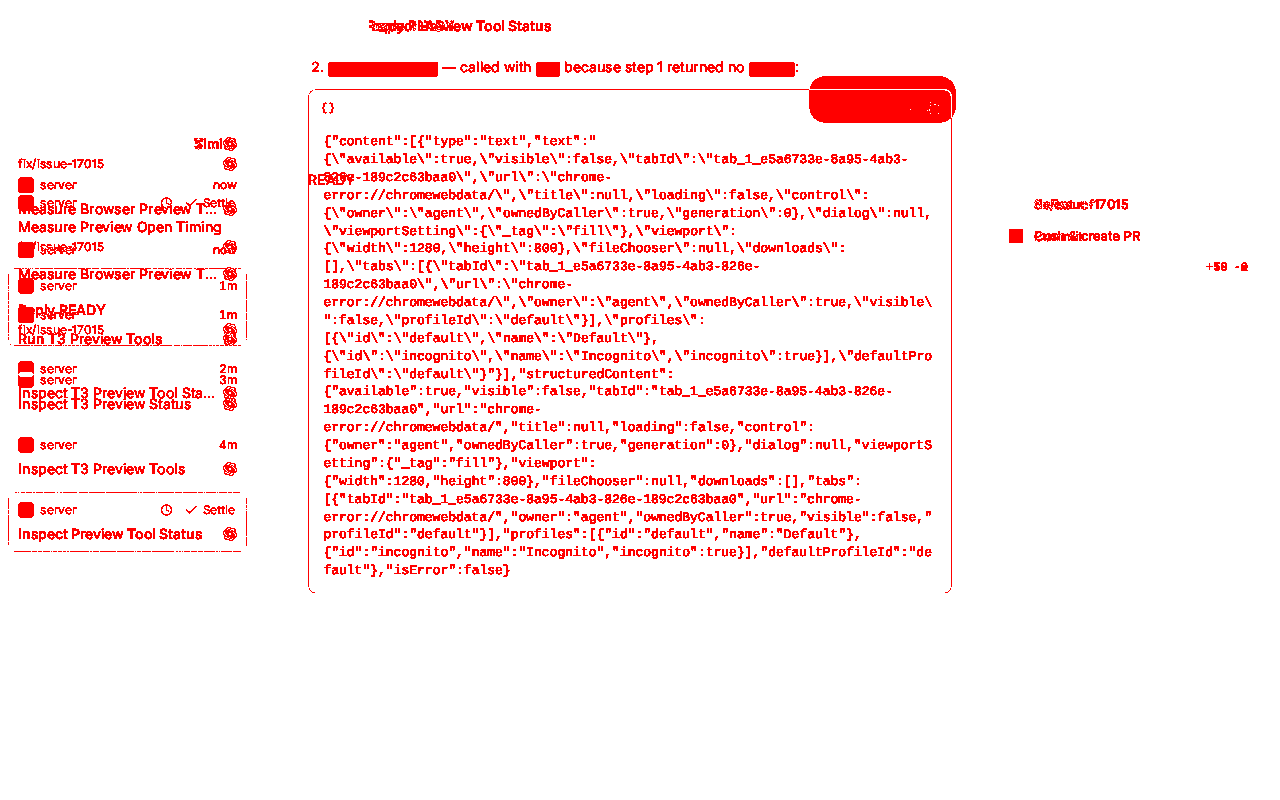

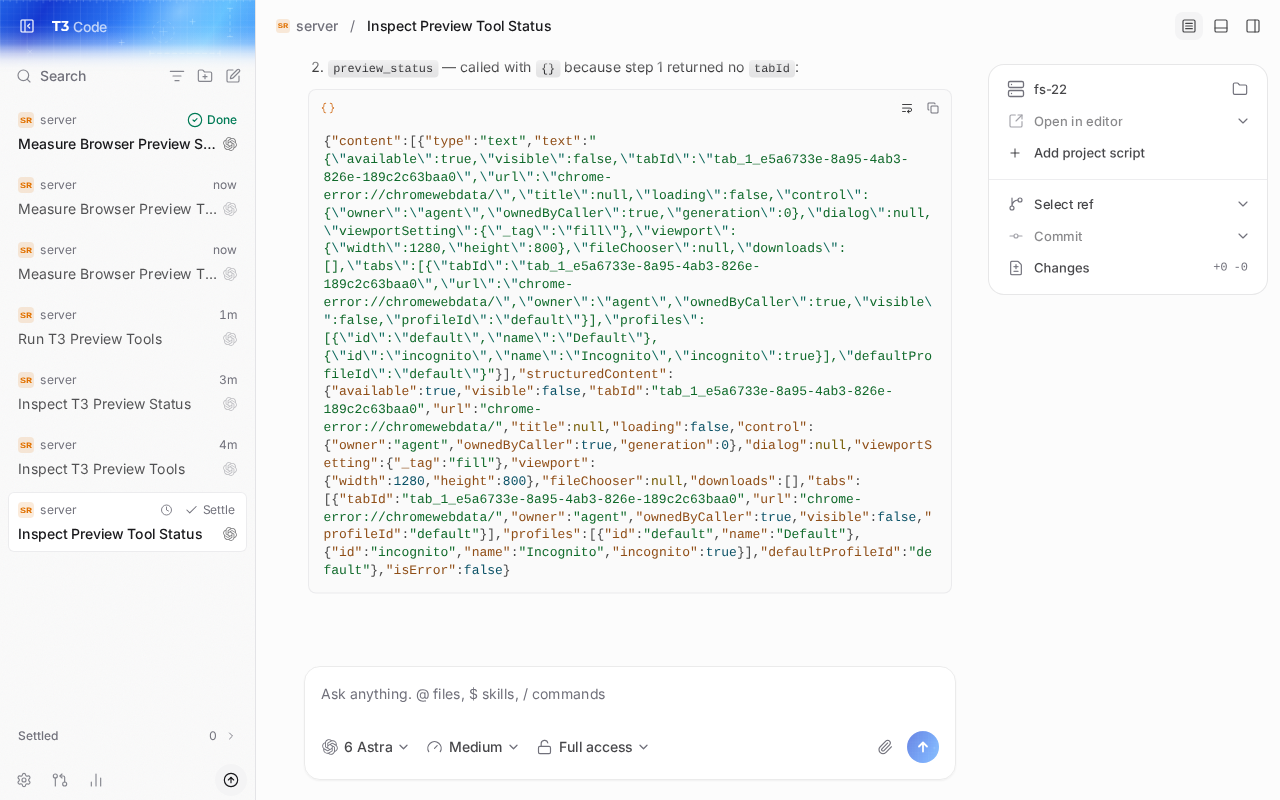

thread-B	R2 thread-B Before	R2 thread-B After	R2 thread-B zero threshold amplified diff	R2 thread-B 5 percent fuzz diff

R3 — 1280×800, light

Frame	Before 36d4d711b7	After 0b70531b31	Diff0	DiffT

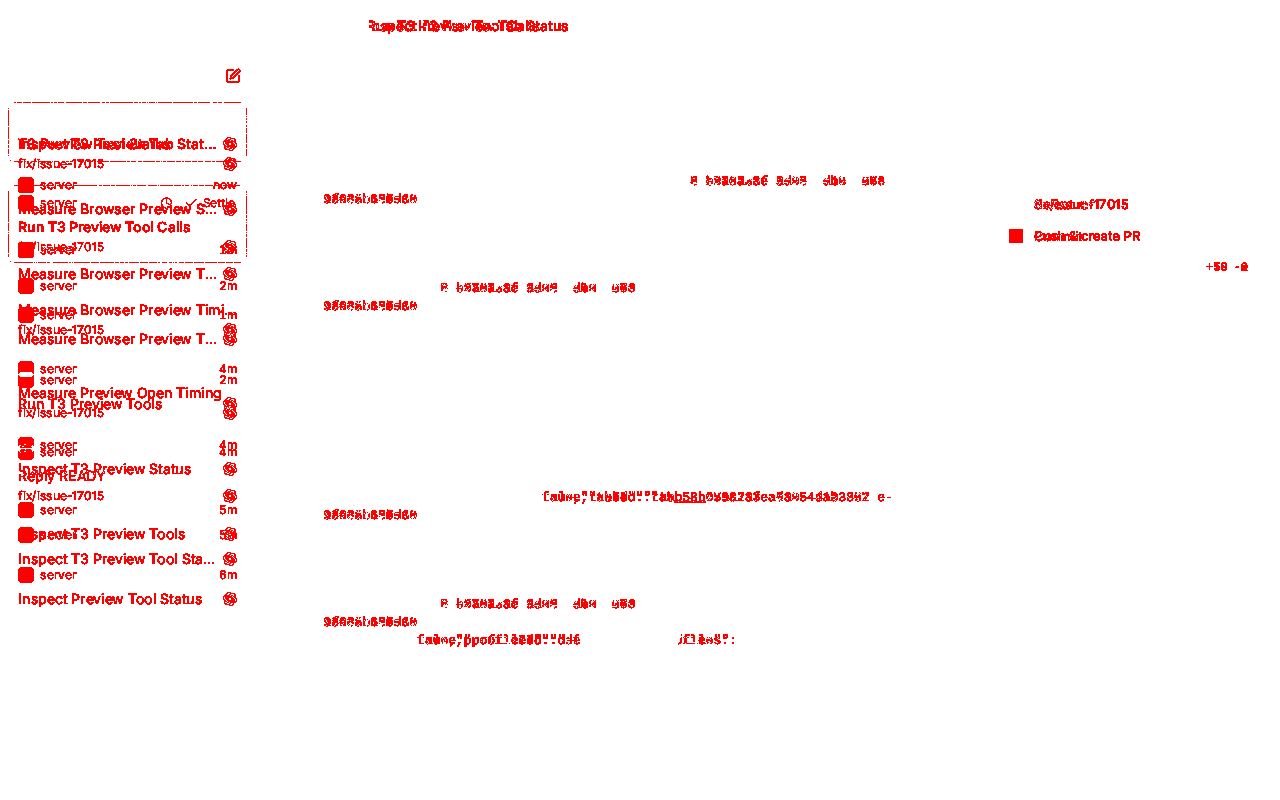

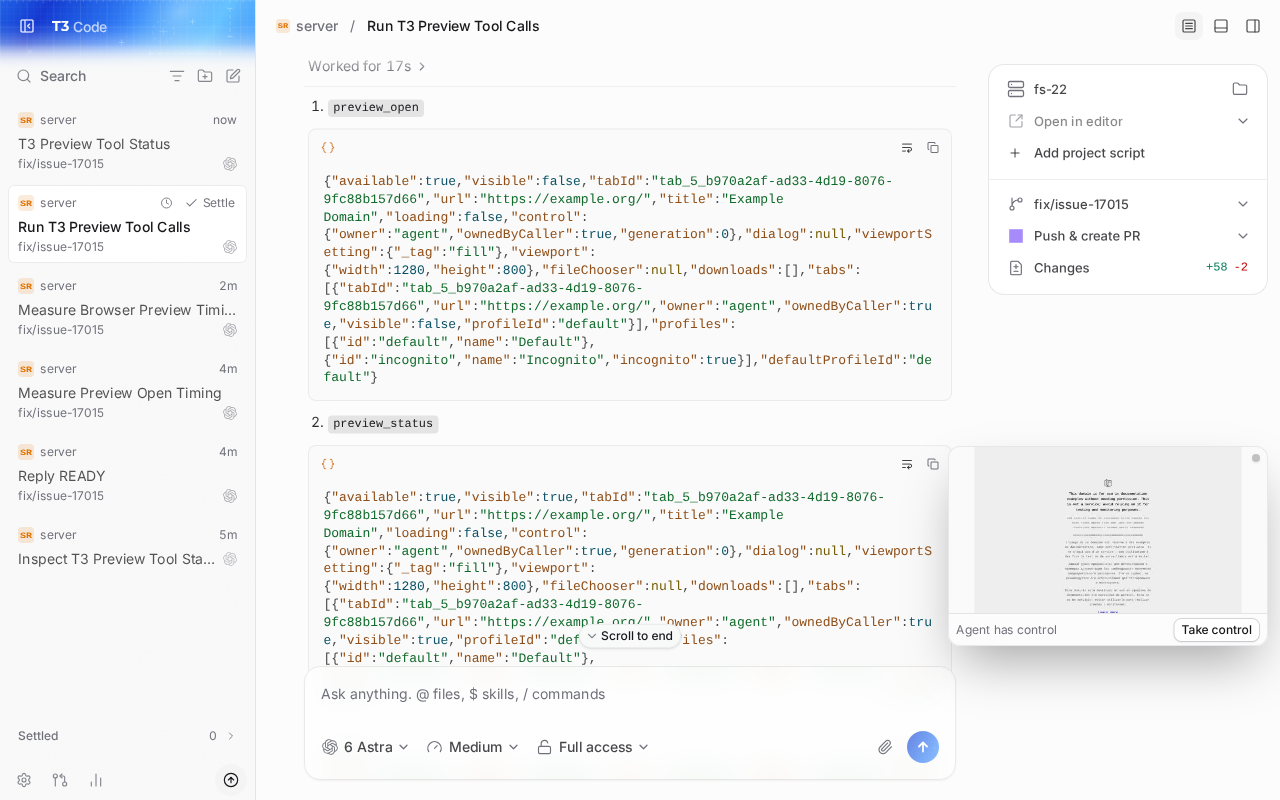

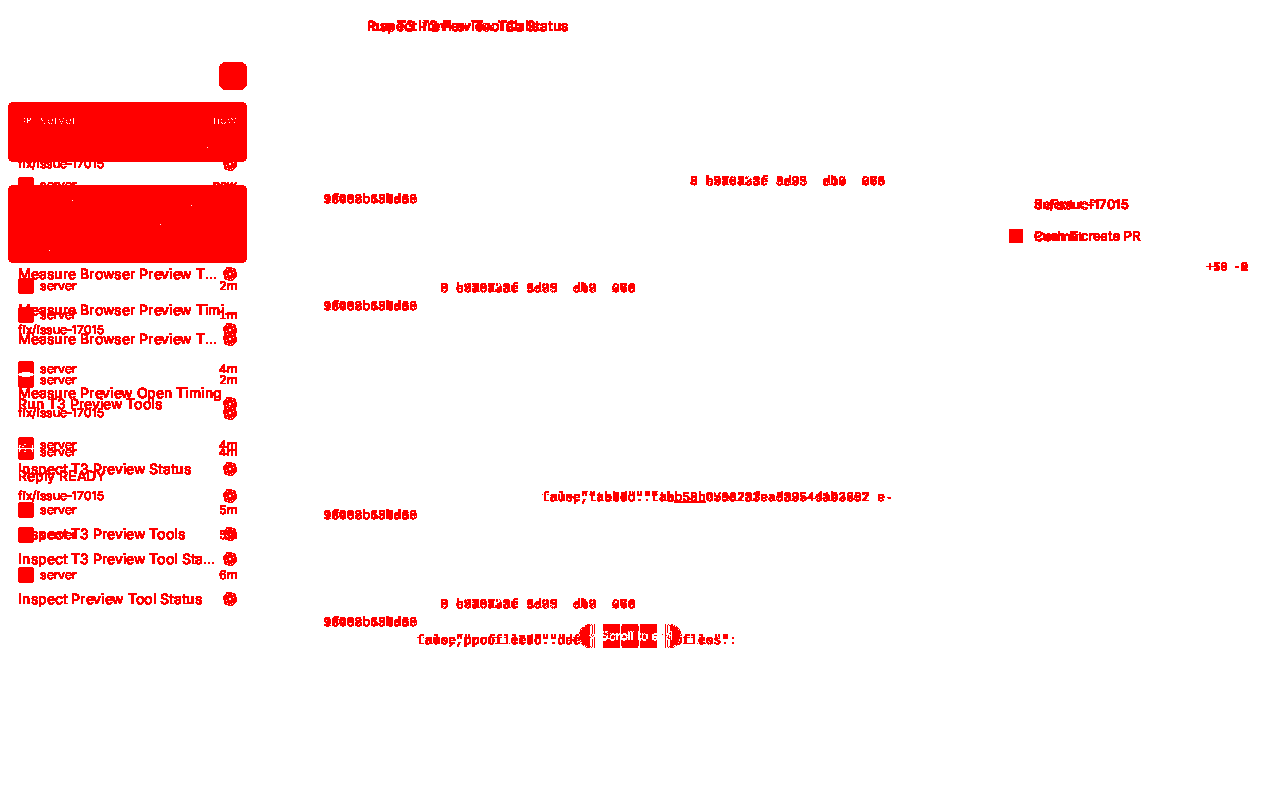

open	R3 open Before	R3 open After	R3 open zero threshold amplified diff	R3 open 5 percent fuzz diff

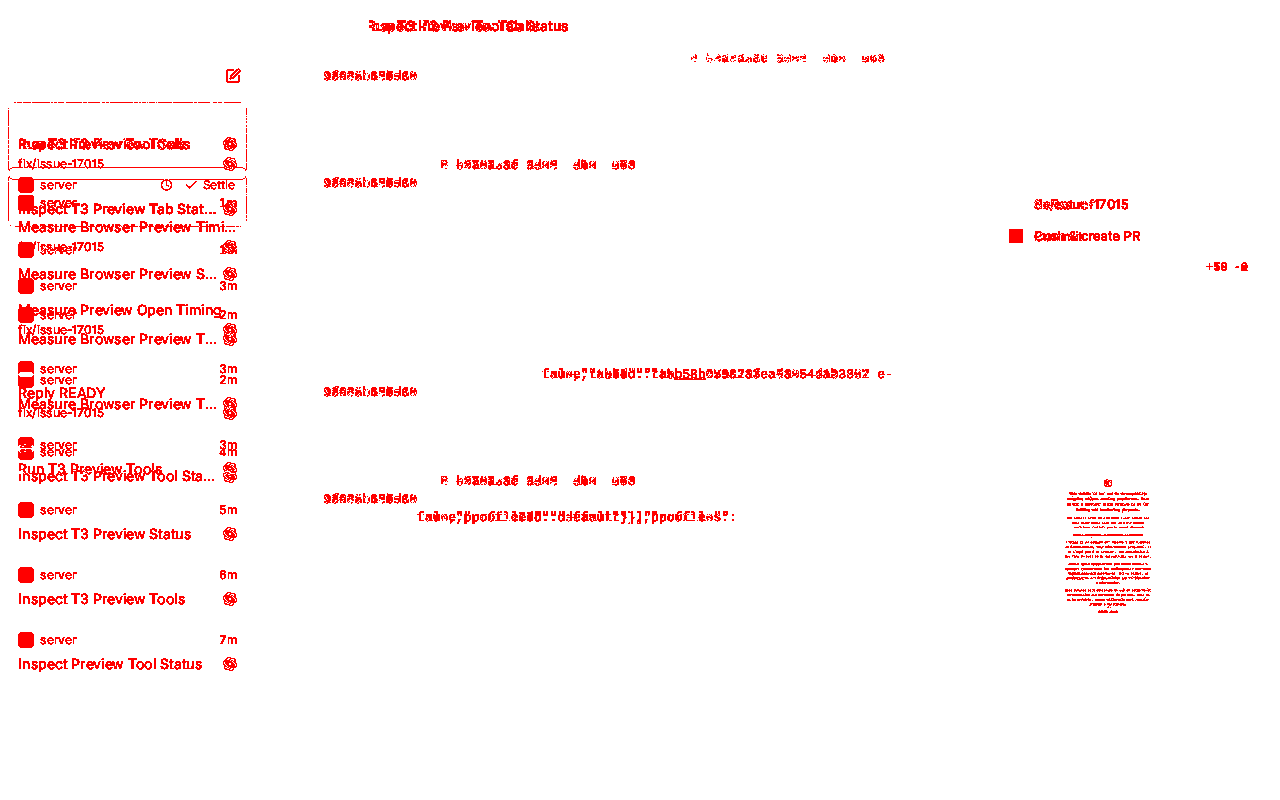

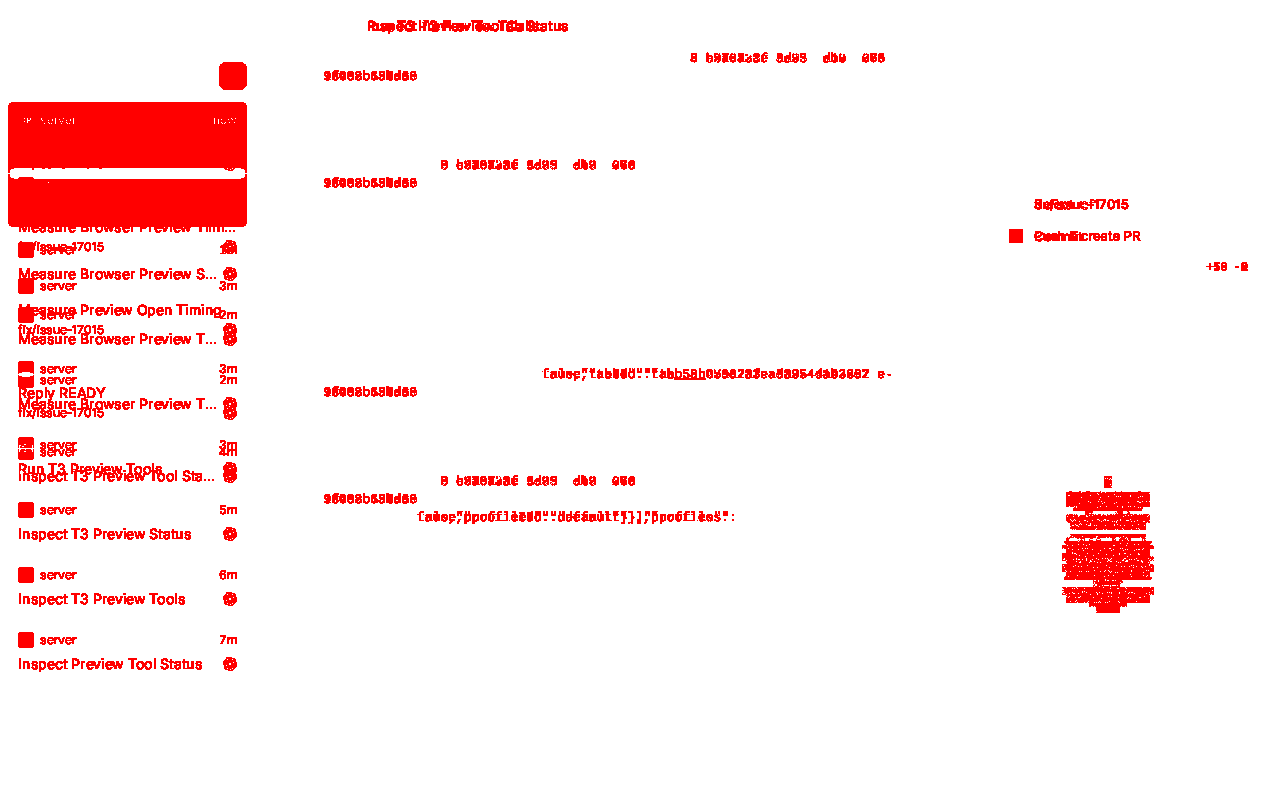

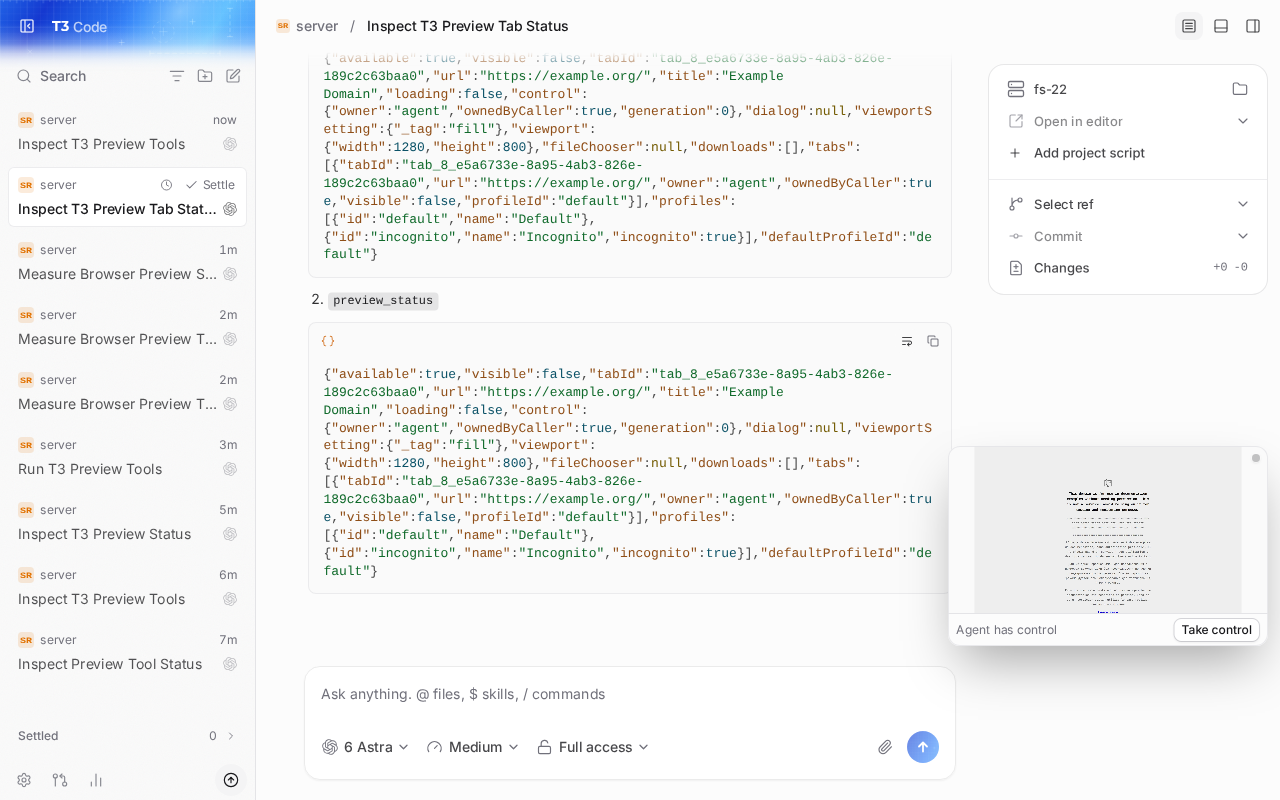

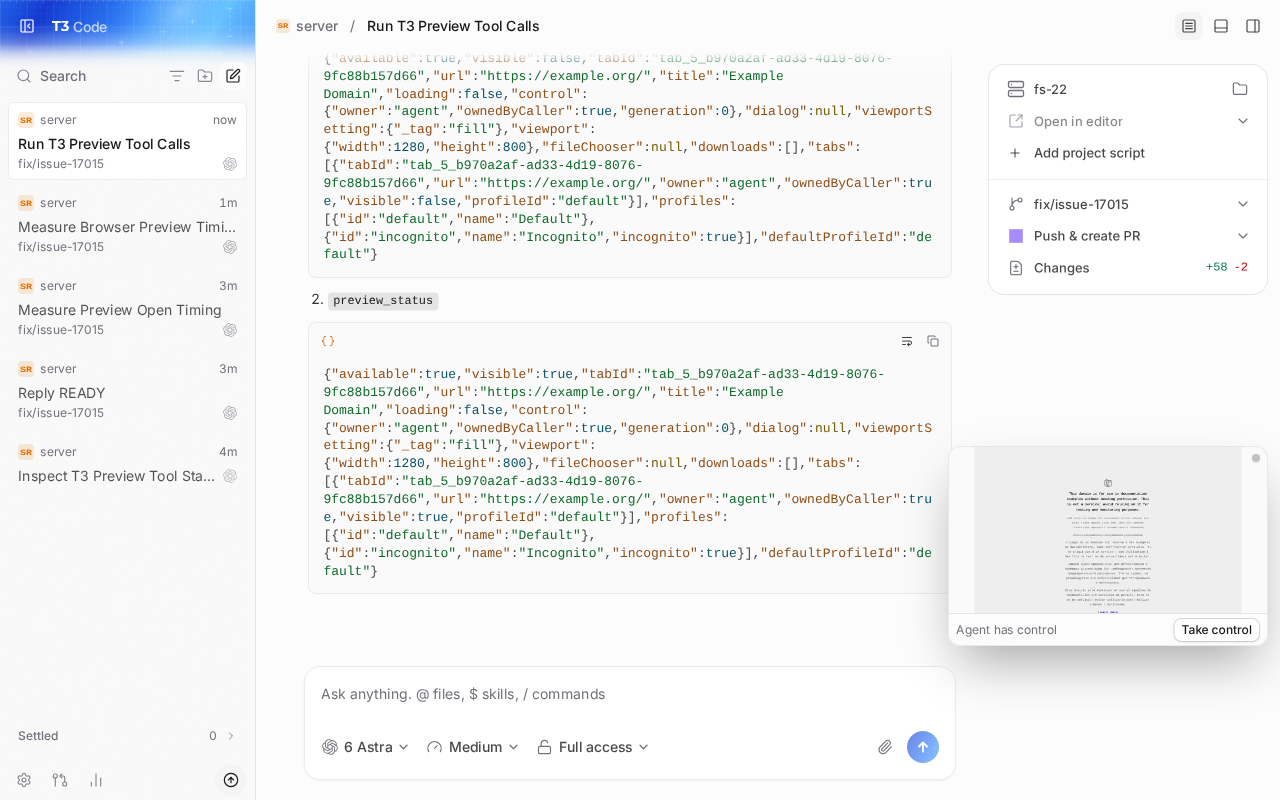

status	R3 status Before	R3 status After	R3 status zero threshold amplified diff	R3 status 5 percent fuzz diff

R4 — 1280×800, light

Frame	Before 36d4d711b7	After 0b70531b31	Diff0	DiffT

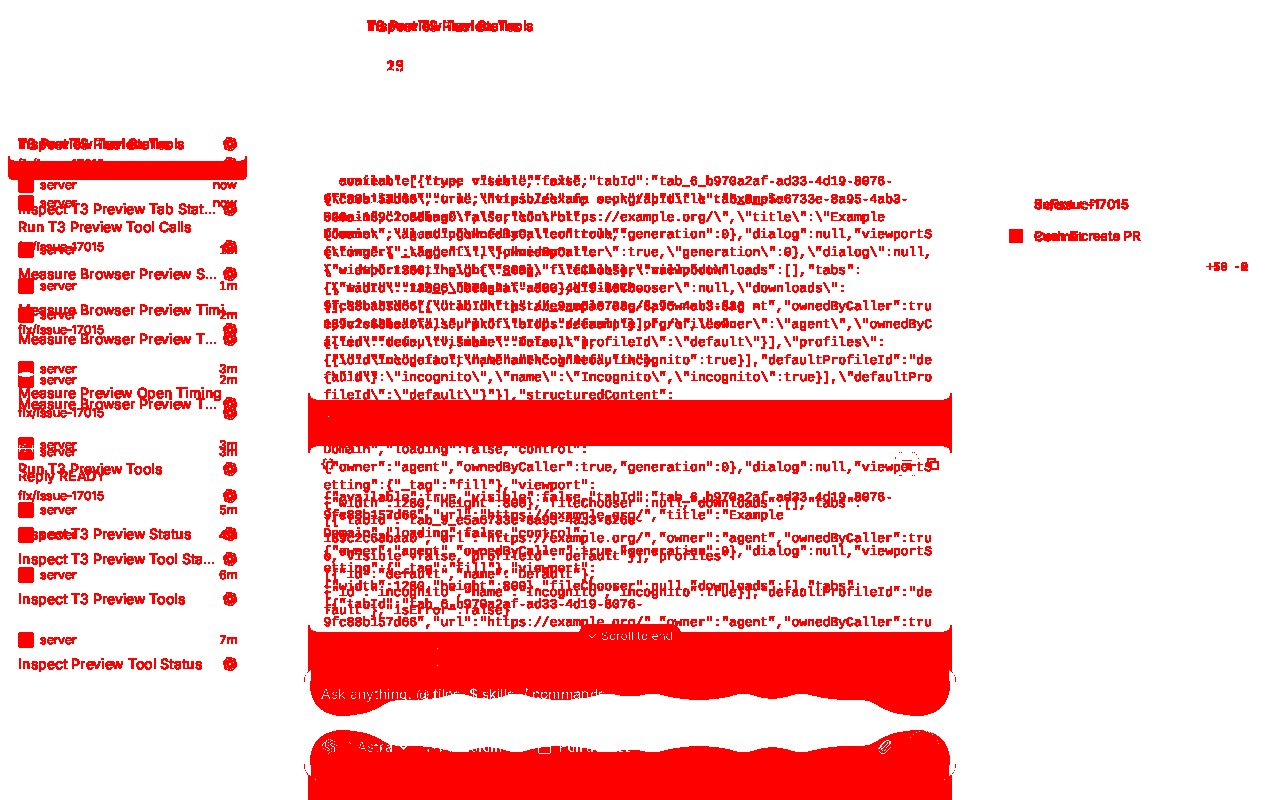

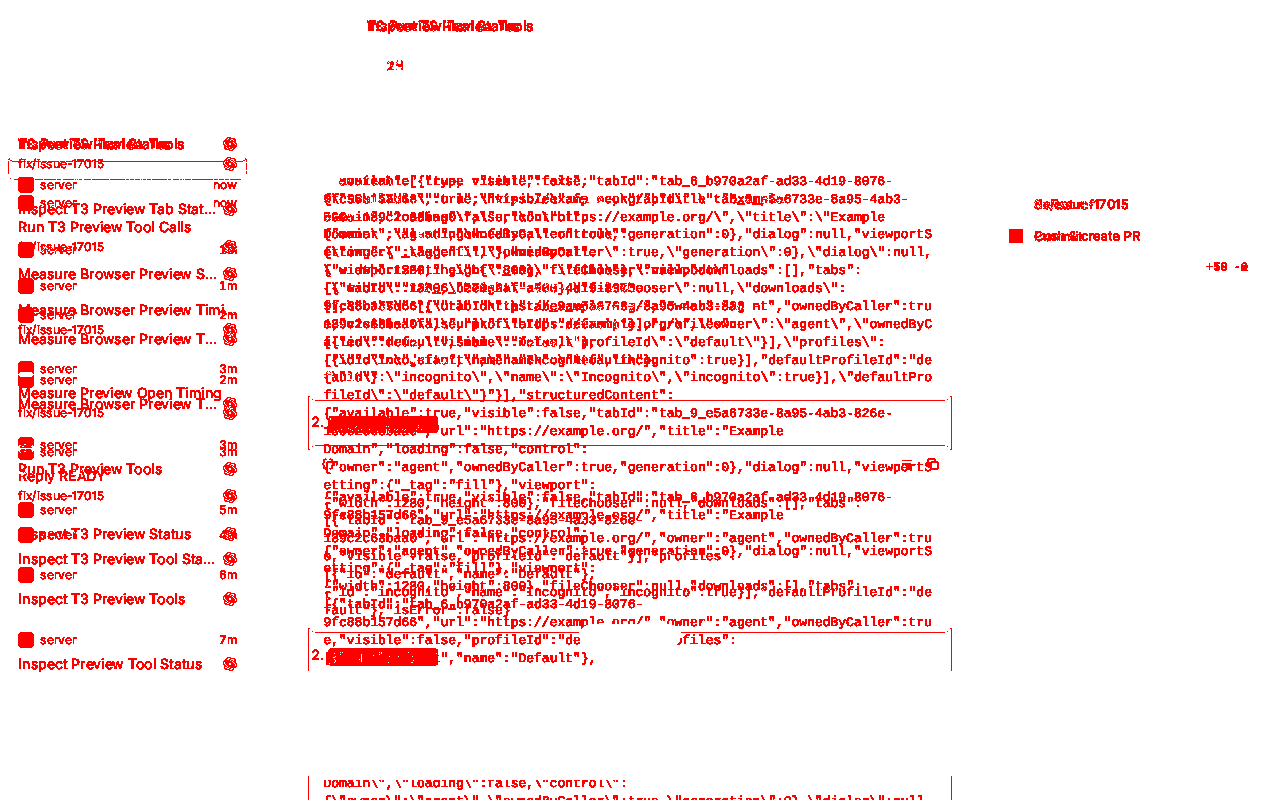

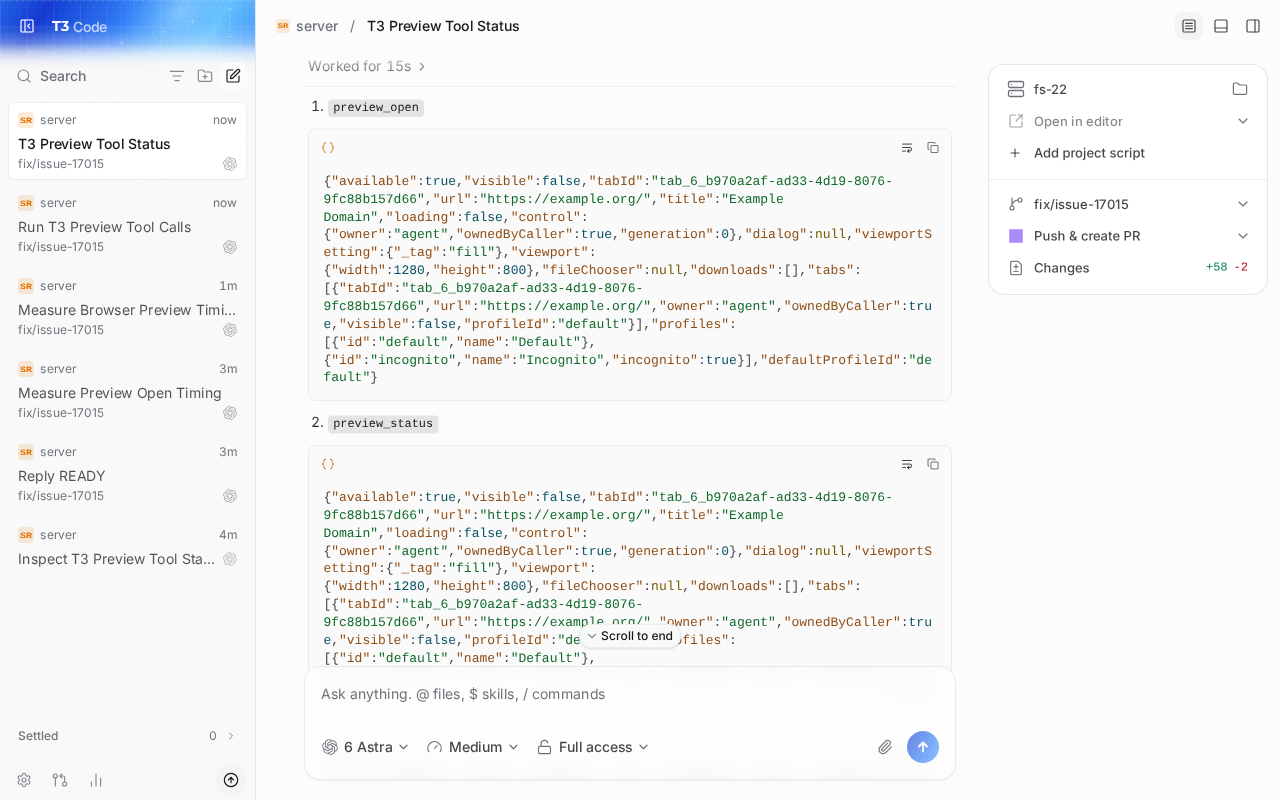

open	R4 open Before	R4 open After	R4 open zero threshold amplified diff	R4 open 5 percent fuzz diff

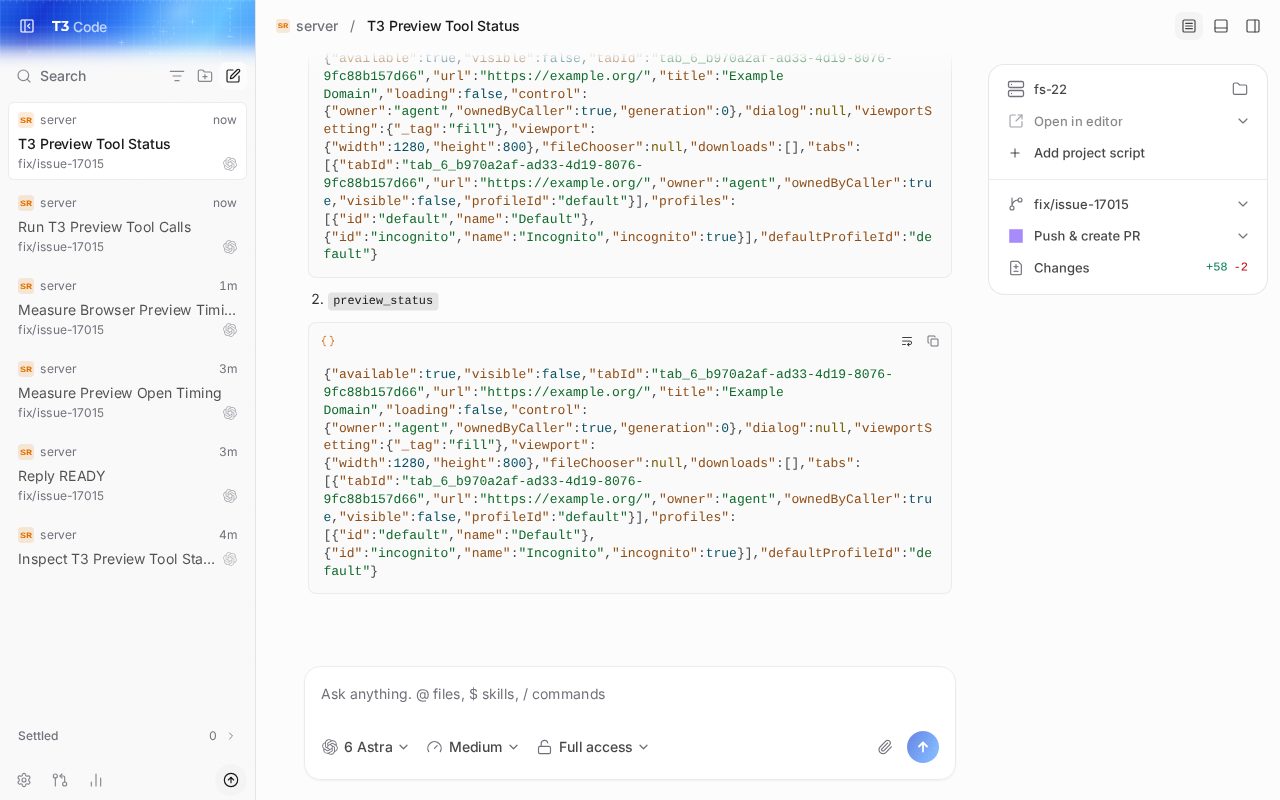

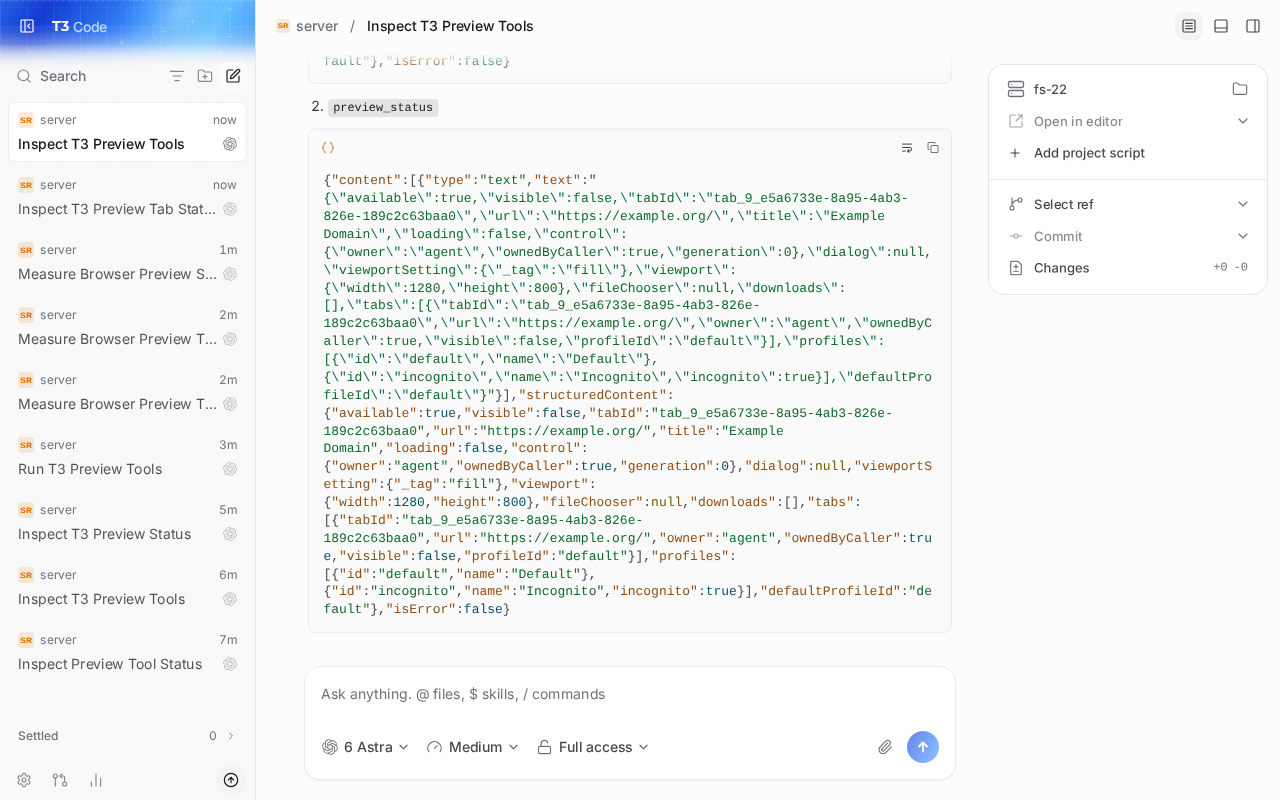

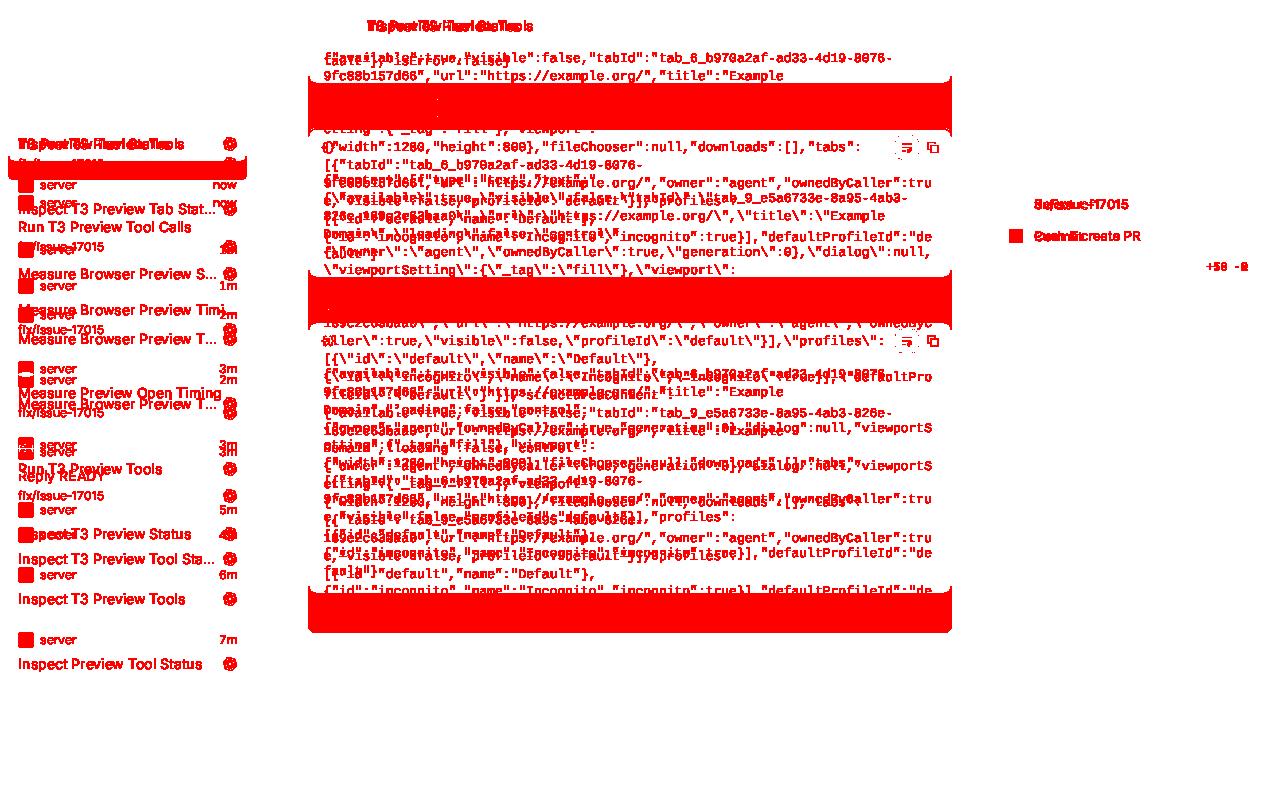

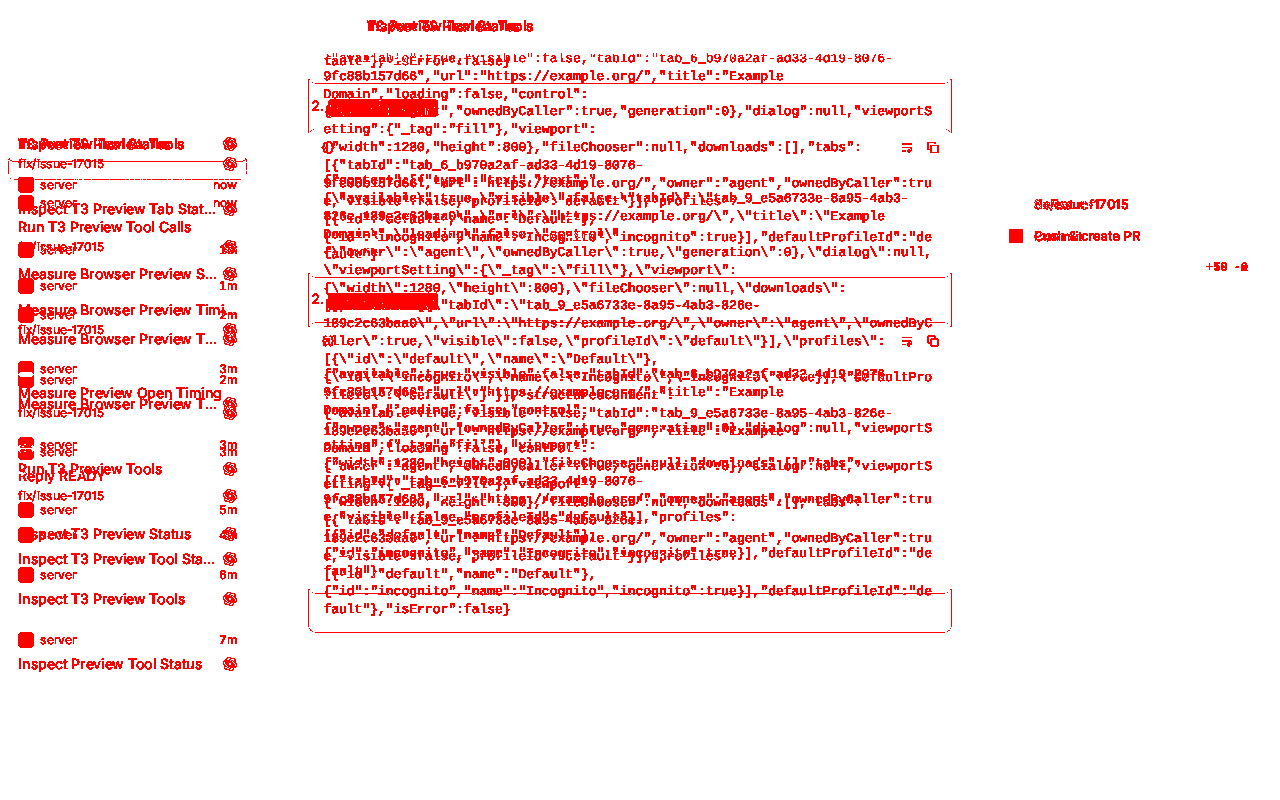

status	R4 status Before	R4 status After	R4 status zero threshold amplified diff	R4 status 5 percent fuzz diff

Prompts and retry notes: prompts.txt · full capture report with the "what else changed" list: report.md · raw archive: evidence-raw.zip

Not checked: desktop-rendered tabs (the change skips them), the remaining-deadline clamp (no prompt-level control of the request budget), closing the tab before a viewer attaches, mobile and remote/tunnel attach timing.

Code by Claude Opus 5.5 (lead, implementation) and GPT-6.1 Sol (review, proof audit, captures) in T3 Code.

🤖 Generated with Claude Code

Checks

24 successful · 8 skipped

All checks passed

Added 4 commits2d ago

test(server): preview_open sees a viewer that attaches after the reveal; reword visible0b70531
fix(server): preview_open reports a tab it reveals as visible1a97461
fix(server): wait only for explicit preview shows; describe visible as a streamed viewdfd49a3
Merge remote-tracking branch 'origin/main' into fix/issue-17015f731eb4

MmacroscopeappBotapproved these changes2d ago

MmacroscopeappBot2d ago

Approvability

Verdict: Approved at f731eb4

Macroscope's review found this PR approvable — This is a focused server bug fix that waits for an explicitly revealed preview viewer to attach before reporting visibility, with a bounded timeout and a regression test. The contract changes only clarify the existing visibility field semantics.

^{You can add or adjust custom eligibility rules. Learn more.}

Ggithub-actionsBot2d ago

Thread transfer impact

✅ Thread transfer remains within every enforced ceiling.

Provider	Metric	Main baseline	This PR	Impact	PR ceiling
Codex	Total thread wire	5.0 KiB	5.0 KiB	−6 B (−0.1%)	6.8 KiB	✅
Codex	Thread snapshot wire	3.8 KiB	3.8 KiB	0 B (0.0%)	4.9 KiB	✅
Codex	Live turn WebSocket wire	1.3 KiB	1.2 KiB	−6 B (−0.5%)	2.0 KiB	✅
Codex	Live turn WebSocket decoded	21.6 KiB	21.6 KiB	0 B (0.0%)	24.4 KiB	✅
Codex	Live turn messages	2	2	0 (0.0%)	8	✅
Claude	Total thread wire	5.1 KiB	5.0 KiB	−6 B (−0.1%)	6.8 KiB	✅
Claude	Thread snapshot wire	3.8 KiB	3.8 KiB	0 B (0.0%)	4.9 KiB	✅
Claude	Live turn WebSocket wire	1.3 KiB	1.3 KiB	−6 B (−0.5%)	2.0 KiB	✅
Claude	Live turn WebSocket decoded	21.9 KiB	21.9 KiB	0 B (0.0%)	24.4 KiB	✅
Claude	Live turn messages	2	2	0 (0.0%)	8	✅

Baseline: dc84b09 · PR result: f731eb4 · Source CI: success

Scenario and decoded snapshot size

10 historical turns, 5 command tools per turn, 878.9 KiB retained MCP result per historical turn, and a 1.05 MiB retained result in the measured turn.

Codex decoded thread snapshot: 108.5 KiB
Claude decoded thread snapshot: 108.8 KiB

Updated in place by a trusted workflow. PR artifacts are strictly validated and never executed.

CcoderabbitaiBot2d ago

Review in Change Stack →

Walkthrough

When an explicit reveal request targets a non-desktop tab with no viewers, ServerBrowser waits briefly for a viewer to attach, subject to the request deadline. The preview status descriptions clarify that visibility reflects a client streaming the live view.

Changes: Preview visibility

Layer / File(s)	Summary
Reveal and viewer attachment wait `packages/contracts/src/previewAutomation.ts`, `apps/server/src/preview/ServerBrowser.ts`, `apps/server/src/preview/ServerBrowser.test.ts`	The status descriptions define visibility as a client streaming the live view, excluding the desktop app’s own webview. For eligible explicit reveal requests, `ServerBrowser` waits up to 1,000 ms, bounded by the remaining request deadline, for a viewer to attach. A test checks that an asynchronous viewer attachment leads to `visible: true`.

Priority: External image Low

Estimated code review effort: 2 (Simple) | ~10 minutes

Change: Bug fix · Severity of issue fixed: Low

Sequence Diagram(s)

mermaid

1	sequenceDiagram
2	participant PreviewOpen
3	participant ServerBrowser
4	participant ViewerClient
5	PreviewOpen->>ServerBrowser: Request explicit reveal
6	ServerBrowser->>ViewerClient: Send reveal request
7	ViewerClient->>ServerBrowser: Attach viewer
8	ServerBrowser->>PreviewOpen: Return status with visible true

Possibly related issues

pingdotgg/t3code#23015 — This issue also reports visible: false after open: true; this change adds a wait for viewer attachment, while mobile viewing remains outside the change.

Suggested labels: bugfix

Suggested reviewers: t3dotgg

Merge Risk: External image Low · up to f731e

Closing a preview during the brief wait can produce a stale status response. This is a narrow, recoverable case; the change is mergeable with a targeted follow-up.

Pre-merge checks: ^Passed 4

Check name	Status	Explanation
Title check	Passed	The title is concise, specific, and accurately describes the primary fix: `preview_open` now reports a shown tab as visible.
Description check	Passed	The description includes complete Problem, Change, Scope and approval, and Verification sections. It explains the behavior, implementation, linked issue, test results, manual verification, evidence, a…
Linked Issues check	Passed	Directly linked issue `#17015` has two coding requirements. (1) After an explicit open/show request, return visibility that matches the user-facing preview state. (2) Document what visible measures and …
Out of Scope Changes check	Passed	The whole-PR diff against the merge base contains three code changes. All three connect to `#17015`. 1. apps/server/src/preview/ServerBrowser.ts: the viewer-wait constant, awaitViewer, the viewerAttach…

Full details: Description check

Explanation

The description includes complete Problem, Change, Scope and approval, and Verification sections. It explains the behavior, implementation, linked issue, test results, manual verification, evidence, and untested scope.

Full details: Linked Issues check

Explanation

Directly linked issue #17015 has two coding requirements. (1) After an explicit open/show request, return visibility that matches the user-facing preview state. (2) Document what visible measures and whose view it describes.

Requirement (1): ServerBrowser.ts adds awaitViewer. When reveal === true, tab.viewers.size === 0, and tab.desktop === null, preview_open waits up to min(1000 ms, remaining deadline) for a viewer. The wait starts before the page-load wait, so the two overlap. The wait ends when the viewer attaches, which resolves tab.viewerAttached in the viewer acquire path. A tab no client shows still returns visible: false after the bound. The new test in ServerBrowser.test.ts, per the PR, fails on main and passes on this head.

Requirement (2): packages/contracts/src/previewAutomation.ts adds the same schema description to top-level visible and to tabs[].visible. The description states that visible is true while any client streams the tab's live view and that the desktop app's own webview does not count.

Limits: the 1 s bound is a timing heuristic. A client that attaches after 1 s still yields visible: false, as the PR states. I could not confirm from the diff that deadlineMs uses the same clock as performance.now(). If it does not, the deadline clamp would not hold. The issue does not state a deadline requirement, so this does not change the verdict on #17015.

Full details: Out of Scope Changes check

Explanation

The whole-PR diff against the merge base contains three code changes. All three connect to #17015.

apps/server/src/preview/ServerBrowser.ts: the viewer-wait constant, awaitViewer, the viewerAttached field on ServerTab, the reveal-path wait in preview_open, and the resolve call in the viewer acquire path. These implement the explicit-reveal wait.
packages/contracts/src/previewAutomation.ts: schema descriptions for visible. These implement the documentation requirement.
apps/server/src/preview/ServerBrowser.test.ts: the regression test for the attach-after-reveal case (per the PR summary).

I found no unrelated changes in the diffed files. The file list at the head was too large to review fully, so this verdict covers the diffed files and the PR summary only.
