CodexBar Plasma

KDE Plasma 6 widget for CodexBar. It shows AI provider usage, reset windows, costs, status, and account data in the Plasma panel.

This repository contains only the Plasma applet. Provider logic, authentication, configuration, quota parsing, and JSON output come from the codexbar CLI.

Standard panel	Minimal panel

The same Codex, Claude, and Gemini usage in both styles. Choose the appearance in Display → Panel; these examples show provider meters with panel text hidden.

Provider overview	Local sessions

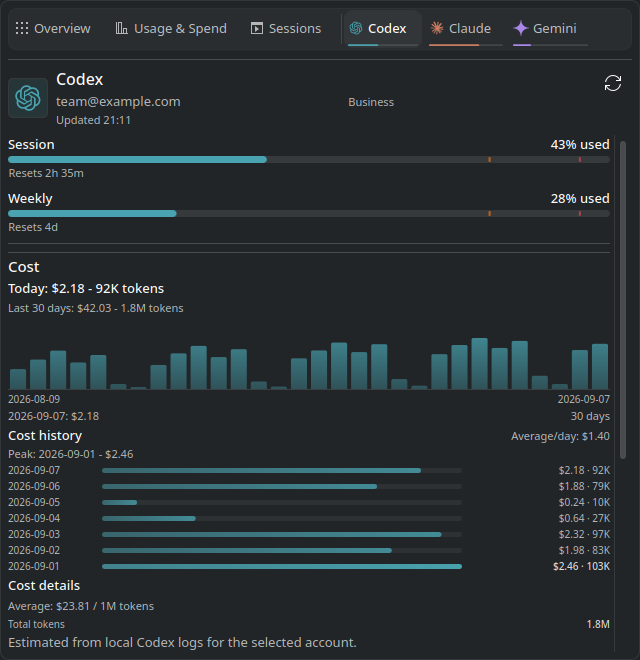

Usage & Spend	Provider details

Click a screenshot to view it at full size. These captures show version 0.2.34 in Breeze Dark with synthetic accounts, usage, spend, and session data. The widget follows the user's Plasma theme for text, surfaces, selection, and status colors; provider accent colors stay stable for recognition.

Install

1. Install the codexbar CLI from the official CodexBar release tarballs or another installation method documented by the upstream project. Third-party packages such as AUR can lag behind upstream releases.

2. Download codexbar-plasma.plasmoid from the latest release.

3. Install the widget:

   sh

   1	kpackagetool6 -t Plasma/Applet -i codexbar-plasma.plasmoid

4. Add CodexBar to a Plasma panel.

To upgrade an existing install:

To update using the bundled release helper:

The helper accepts only immutable GitHub releases. It binds both release assets to the advertised tag, checks their GitHub SHA-256 digests and published checksum, then validates the applet id and version inside the archive before invoking kpackagetool6. Any mismatch aborts the installation.

The widget can also check GitHub Releases for newer .plasmoid packages. Check for widget updates and update-available notifications are enabled by default; Install widget updates automatically is opt-in. If the widget is published through KDE Store in the future, prefer Plasma Discover/KNewStuff for that install channel.

Requirements

• KDE Plasma 6
• kpackagetool6
• org.kde.plasma.plasma5support
• codexbar CLI on PATH, or an absolute CLI path configured in the widget
• notify-send for optional Plasma notifications
• curl, jq, python3, sha256sum, and GNU timeout for the bundled release updater; GNU timeout also bounds CLI writes after a secret prompt

Leave Command path set to codexbar to resolve the CLI through Plasma's PATH. If the CLI works in a terminal but the widget cannot find it, locate the binary with:

Then paste the returned absolute path into the widget setting.

CLI check

Before debugging the widget, verify the data source directly. If these commands do not work, the Plasma widget cannot show the corresponding data.

The widget keeps compatibility fallbacks for older CLI payloads. With CodexBar 0.48.1 and later it also consumes the generic usage.details contract for provider-defined detail rows and bounded bar/line charts.

Features

Panel and popup:

• Compact panel indicator for one provider or multiple providers.
• Optional Minimal panel style in Display → Panel uses neutral provider icons, thin meters in the Plasma accent color, and wider click targets. Use minimal preset also enables provider meters, including with a single provider, and hides panel names, usage text and credits. The style selector changes appearance alone, so custom visibility settings remain available. Quota and service warnings retain their semantic colors. Existing installations keep the Standard style; neither option changes the desktop theme, panel geometry, provider selection or popup.
• Provider tabs with usage bars, reset windows, account identity, status, and credits.
• Panel text modes for percent used or left, pace, usage plus pace, reset time, and a run-out forecast that shows the predicted duration only while the CLI expects the quota to run out before its reset.
• Choose the automatic, primary, secondary, or tertiary quota for panel text and meters in Display settings. Missing quotas are omitted; popup tabs keep their automatic quota selection.
• Set independent visibility conditions for the full panel text and each provider meter: always, minimum percent used, reset within a chosen number of minutes, or forecast exhaustion before reset. Conditions use the displayed quota, respect the existing visibility checkboxes, and need no extra CLI calls. Missing data does not satisfy a condition. Reset conditions update each minute; the provider icon remains available when all conditional elements are hidden.
• Auto-select highest-usage provider for the compact panel and provider detail focus.

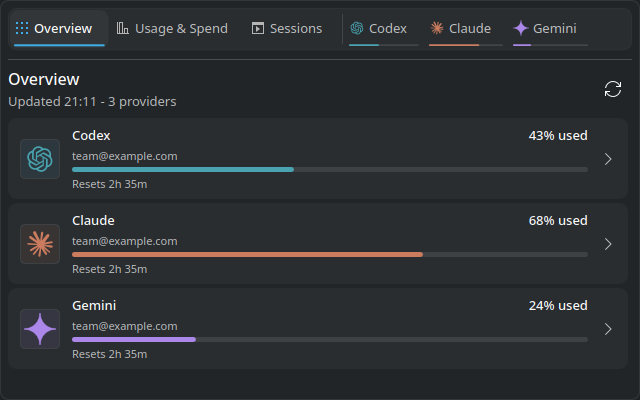

• Overview tab with per-provider usage summary and quick switching.
• Overflowing popup tabs have separate scroll buttons and immediate keyboard focus reveal, so navigation never covers provider labels.

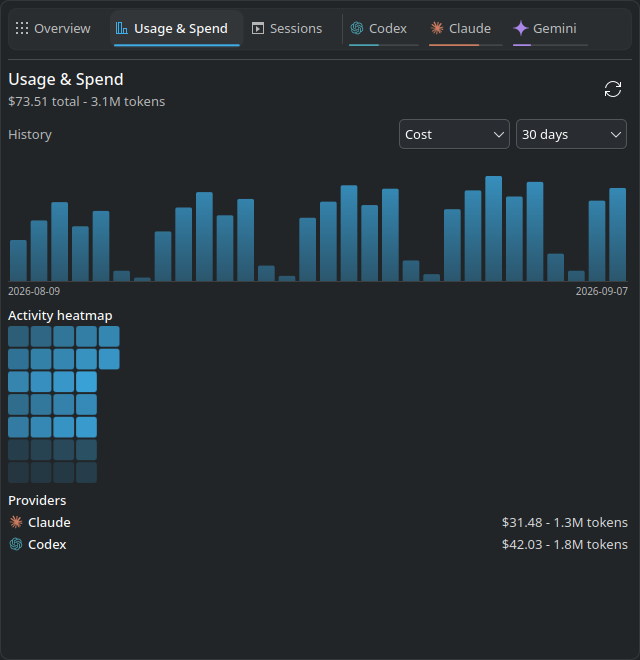

• Global Usage & Spend tab with a Cost/Tokens selector, a 7/30/90-day range selector, interactive daily chart, activity heatmap, and provider totals that keep different currencies separate.

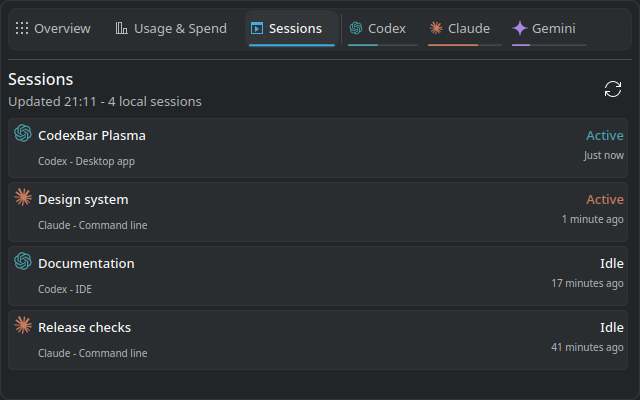

• Local Sessions tab backed by sessions --json-v2; transcript paths and working directories are never rendered or opened. The tab refreshes stale session data while it remains visible.
• Overview providers can be limited to a chosen set of up to 3 providers, or left automatic (the first 3 eligible providers).
• Usage dashboard summaries for provider payloads that expose API spend, request, token, model, or dashboard fields through the CLI.
• Declarative provider detail sections from the CLI usage.details contract, including labeled rows, secondary values, and keyboard/pointer-inspectable bar/line charts.

Providers and accounts:

• Search providers by name or ID and filter All, Enabled, or Disabled locally. Clear filters restores the list without changing selection or provider settings.
• Provider enable/disable and setup actions write CodexBar configuration immediately; Apply and Cancel cover widget settings only.
• Account discovery and selection through codexbar usage --all-accounts.
• Provider docs, dashboards, login/account links, and redacted diagnostics.
• With the official CLI 0.56.2 verified by this repository, the Providers page offers enable/disable, supported single API key setup, CLI command hints, and docs/dashboard/login links.
• The widget also has a renderer for the proposed provider settings descriptor. CLI 0.56.2 does not expose that contract, so source, cookie, base URL, workspace/project, region, and other descriptor-backed editors remain unavailable. They require upstream CLI support.
• Generic API key setup for Fireworks, whose current CLI contract discovers the account slug from the key.
• Fallback names, colors, links, aliases, and icons for all 69 providers in the official CodexBar 0.49.1 registry; fork-only provider assets remain available for compatibility.

Costs and history:

• Local cost drill-down when the CLI exposes cost data.
• Local-history scans run independently from quota refreshes, automatically at most once per hour; the Usage & Spend refresh button starts one immediately.
• Token breakdowns, model summaries, recent daily spend, cost history bars, and average cost per 1M tokens, with a configurable cost history window.
• Cost totals qualified as estimated, partial, or approximate from the CLI's bounded pricing coverage and provenance metadata.
• Project cost and token totals in Usage & Spend, ranked within each provider by the selected metric and using the same history range. The official CLI 0.56.2 exposes project data for Codex. Missing amounts remain unavailable; project paths and nested source records are discarded. The bounded list signals omitted projects and does not change provider or global totals.
• Cost-trust notices explain why a range is incomplete or estimated. Closing a notice suppresses the same meaning for that provider or the aggregate Spend view across refreshes and popup reopenings; a materially different warning is shown again.

Status and notifications:

• Provider status incident badge in the panel and provider detail view.
• Optional quota warning markers on usage bars.
• Optional Plasma notifications for provider status incidents, configurable quota crossings, predicted quota exhaustion from CLI pace data, and when a heavily used limit resets back to empty.

Settings:

• Split settings pages for general refresh/notification controls, display, advanced provider overrides, and redacted CLI diagnostics.
• A global, cancelable Restore all defaults action for user-facing widget settings; provider accounts and CodexBar CLI configuration are left intact.
• Usage refresh choices: no periodic refresh, 1 min, 2 min, 5 min, 15 min, or a custom interval. Provider service status remains opt-in.
• Configurable order for the provider identity, service status, usage text, and provider meters shown in the panel.
• Check for widget updates, notify when an update is available, and opt in to silent automatic widget installation.

Default settings

The defaults keep quota usage visible and reserve notifications for quota warnings and available updates. Percentages show used quota, matching the 80% warning and 95% critical thresholds. Reset notifications are off until enabled.

These values apply to new widgets and settings without a stored override. Existing stored choices take precedence. General → Restore all defaults prepares these values for an existing widget; select Apply or OK to save them, or Cancel to keep its settings. Provider accounts and CLI configuration are not reset.

Troubleshooting

If the widget stays on Loading:

If that works in a terminal but not in Plasma, run command -v codexbar and paste the returned absolute path into the widget setting. Use Use PATH to return to the portable codexbar default after changing installation method.

If providers or accounts are missing:

Then check the Providers settings page and make sure the provider is enabled.

If costs are missing:

Cost sections are shown only when the CLI returns cost data for the selected provider.

If notifications do not appear:

Then confirm notifications are enabled in the widget settings.

For Plasma/QML errors:

Languages

The widget includes Italian, French, German, Spanish, and Brazilian Portuguese translations. It uses your Plasma language preferences and falls back to English for other languages. Provider names and text supplied by the CLI retain their original language.

To add or improve a translation, see the translation guide.

Development

Install from a local checkout:

Upgrade a local checkout:

Both paths build and install the curated .plasmoid archive; repository-only files such as tests and agent instructions are not copied into the installed applet.

Run checks:

Run the popup smoke test from a graphical Plasma 6 session:

This requires Python 3, GNU gettext, plasmawindowed, dbus-run-session, and the Plasma, Kirigami, and KDE desktop control QML modules. README captures also require the Breeze Dark color scheme. The localized scenarios use the UTF-8 locales listed in the translation guide; CI generates them during setup. The runner opens a temporary applet for each scenario, captures the view, and closes the preview automatically:

Select one scenario or choose a new artifact directory:

Use --renderer opengl on a graphical session with OpenGL for accurate provider icon colors. The default software renderer checks layout and behavior, but does not render Kirigami's icon color masking. Qt documents the software renderer's effect limitations.

The command prints the artifact directory, defaulting to dist/smoke/run-*. Each scenario produces a PNG and a process log; results.json records pass or failure. Existing output directories are never overwritten. The timeout is 30 seconds per scenario and can be changed with --timeout 60.

The runner copies the current applet into temporary XDG directories under a separate applet ID and uses a private D-Bus session. It sets a synthetic CLI path and disables updates and notifications before QML starts. It does not install a package, use real provider accounts, change the installed widget's settings, or restart Plasma. Temporary files and preview processes are removed on completion, timeout, or interruption.

The capture component selects the real popup views and waits for the expected state before using Qt's grabToImage. The panel-rules scenario exercises quota selection, visibility conditions, checkboxes, and clock changes in the real applet, then captures its compact representation. The tabs-overflow scenario walks the tab focus chain and checks immediate reveal. The provider-settings scenario captures the real settings page after exercising local filters. Popup captures include their theme background. QML errors, missing captures, early exits, and timeouts fail the command. The screenshots still need visual review: this is not a pixel-comparison test, and it does not exercise panel placement, key-event dispatch, or the real CLI. Synthetic payloads cover a small subset of the repository's CLI 0.56.2 contract; dates are relative to the run time. Typography uses Noto Sans and the Breeze icons.

make check covers the runner's portable isolation and failure-handling tests and lints the capture QML. make smoke additionally requires the graphical environment and reports a failure rather than silently skipping when that environment is unavailable.

Update the translation template after changing user-facing i18n strings:

After extracting strings, update the .po catalogs with msgmerge and translate new entries as described in the translation guide. make check rejects missing translations, fuzzy entries, and changed %1 placeholders.

Package locally:

Packaging requires Python 3 and GNU gettext. It compiles po/*.po into contents/locale/<language>/LC_MESSAGES/plasma_applet_app.codexbar.plasma.mo and includes those catalogs in the archive. Generated .mo files are not committed.

make check runs ShellCheck, the static regression checks, the Qt tests, XML/JSON validation, and qmllint. When kpackagetool6 is available, it also validates the AppStream metadata; otherwise, it reports that the check was skipped. The command passes --unqualified disable to qmllint because Plasma injects helpers such as i18n() as context properties that otherwise create noisy false-positive warnings.

CI installs the Plasma, Kirigami, and KDE desktop control modules and rejects skipped Qt tests. Import and type warnings fail the check. A separate smoke job runs the real popup scenarios under Xvfb and saves screenshots and logs as workflow artifacts. Releases require both jobs to pass.

Older Plasma packages register some applet types only at runtime. On machines without their QML type metadata, make check reports partial import/type checks. CI supplies that metadata through its pinned image. To require the same checks locally, run:

Project structure:

Provider support stays upstream in CodexBar. When the Plasma frontend needs new data, add it to the CLI JSON contract first instead of scraping or editing CodexBar config files directly from QML.

Attribution

CodexBar Plasma is derived from the CodexBar project and uses the same MIT license. See NOTICE.md.
