Using CodexBar Plasma

See the README for installation and first setup. This guide covers display options, provider setup, history, notifications, and defaults. Available data and actions depend on the selected official CLI. The documentation index links the full CLI 0.56.2 audit and later scoped evidence. TODO.md tracks remaining Linux/Plasma parity work and upstream contract requirements.

Panel and popup

• Standard shows a small colored provider icon beside quota capsules. Minimal uses the same geometry with monochrome icons and capsules in the Plasma text color. Warning and critical colors remain independent for each quota. When a provider's brand hue is within 20 degrees of the theme's warning or critical color, its capsules use a muted version of the brand color, so a healthy quota cannot pass for an alert; the provider icon keeps the brand color. The muted color keeps the capsule's contrast with the panel and is used only when it looks less like the warning colors than the brand does, so a yellow brand beside a pale cream warning keeps its color. Any quota above zero keeps at least a round dot of fill, so an almost exhausted quota stays distinct from an empty one.

• Automatic panel meters show the primary quota above the secondary quota when both have percentages. A single available quota is centered vertically; absent quotas are omitted, while measured zero remains an empty track. If neither primary nor secondary has a percentage, the existing automatic preference supplies one available fallback quota.

• Provider meters work in horizontal and vertical panels. Names, usage text, and credit text remain horizontal-only. Click a provider's icon, capsules, or grouped text, or activate it with the keyboard, to open its detail tab. Hovering one provider's icon narrows the panel tooltip to that provider alone; hovering elsewhere shows the whole roster. Accessible descriptions identify the displayed quotas and their values. The standalone provider icon opens that provider's detail tab too, including when meters are hidden. With no panel provider selected, the widget icon toggles the popup without changing its tab.

• With the default element order, optional text sits after the selected provider's capsules in one group, with a single logo. The other providers keep their own icon and capsules. If that provider's meters are hidden or unavailable, its text keeps a separate identity. Custom element orders retain separate text and meter positions. Separate text keeps its identifying icon among multiple meters; a single selected provider meter does not repeat the icon.

• Panel width is bounded, so a crowded meter row can leave the optional text less room than every enabled item needs. Whole items are dropped rather than cut short, in a fixed order: the provider name first, because the icon beside it already identifies the provider, then the credit balance, keeping the usage text last. For a provider the widget has no icon for, the panel draws a generic icon shared with every other such provider, so there the name is the only identification and outlives the credit balance instead.

• Nothing that is dropped becomes unreachable. Accessible names keep the whole text, the panel tooltip reports each provider's quotas, incidents, and its credit balance while panel credits are enabled, and the popup keeps every detail. A single remaining item is elided only as a last resort.



• Use monochrome icons and meters only in Additional information selects Minimal and enables provider meters, including with a single provider, and hides panel names, usage text and credits. The style selector changes appearance alone. Existing installations keep their style, explicit quota choice, and visibility settings. Automatic meters gain the second quota without a new setting or additional CLI calls.

• Provider tabs with usage bars, reset windows, account identity, status, and credits. The tab surface marks the selected view; a provider tab's underline is its automatic quota meter, never a selection mark.

• A plain credit balance has no allowance denominator and stays meter-free. A monthly Codex credit meter appears only when the CLI provides the validated credits.codexCreditLimit record. Its limit never applies to a plain balance. A Codex extra usage record with nothing used and no cap is an empty placeholder and stays hidden; purchased credits remain in the Credits row.

• Panel text modes for percent used or left, pace, usage plus pace, reset time, and a run-out forecast that shows the predicted duration only while the CLI expects the quota to run out before its reset.

• Choose the automatic, primary, secondary, or tertiary quota for panel text and meters in Panel → Quota, order and visibility. An explicit primary, secondary, or tertiary choice shows one capsule. Automatic text and popup tabs retain their existing quota preference; automatic capsules use the pair described above.

• Set independent visibility conditions for the full panel text and each provider meter: always, minimum percent used, reset within a chosen number of minutes, or forecast exhaustion before reset. A provider meter stays visible when either displayed quota meets its condition; both capsules remain together. Text uses its own displayed quota. Conditions respect existing visibility checkboxes and need no extra CLI calls. Missing data does not satisfy a condition. Reset conditions update each minute; the provider icon remains available when all conditional elements are hidden.

• Auto-select highest-usage provider for the compact panel and provider detail focus. Consumption takes precedence even for fractional percentage differences; incident severity breaks equal-consumption ties, then saved provider order.

• Panel providers can be limited to a chosen set in Panel → Panel providers. The choice lists the enabled providers in their saved order, is limited to the four meters the panel can draw, and can also be left automatic (every enabled provider). The panel meters, panel text, identity, and panel tooltip follow the choice; a popup selection outside the chosen set falls back to the first chosen provider, or the highest-usage chosen provider with auto-select. The popup keeps listing every enabled provider, and quota fetching and notifications stay unchanged. Clearing every checkbox hides provider text and meters while keeping the widget icon available to open the full popup. This explicit empty selection is saved as __none__; use Use all enabled providers automatically to restore automatic selection. Disabled providers retain their saved selection but do not occupy one of the four available slots. If more than four selected providers become enabled again, the first four in provider order appear.

• Overview tab with per-provider usage summary and quick switching. Each row's detail line shows the account identity when the CLI provides one, and an active service incident otherwise; an operational status or the provider's own source name is never presented as identity.

• Screen readers hear what the popup draws. Overview rows describe their quota, detail line, and reset; provider tabs describe the quota their underline draws, a last-known-usage note, and a refresh error that only dims the tab visually.

• Hovering a global or provider tab whose name is cut short, an Overview row whose title or detail line is cut short in a narrow popup, an account button whose label is cut short, or a provider header title, account, or plan that is cut short, shows the full text in a tooltip. Text that fits gets no tooltip.

• Overflowing popup tabs have separate scroll buttons and immediate keyboard focus reveal, so navigation never covers provider labels. A tab wider than the available area stays aligned at its start when focused or selected again.

• Popup tabs follow the usual tab keyboard pattern: Left and Right move focus between tabs and wrap around at either end, Home and End jump to the first and last tab, and Enter or Space opens the focused tab.

• Global Usage & Spend tab with a Cost/Tokens selector, a range selector (7, 30, or 90 days, Month to date, or All history), interactive daily chart, activity heatmap, and provider totals that keep different currencies separate. Chart and heatmap dates use the system locale's short date format, and cost lines separate amount and tokens with ·. The heatmap groups the range into weekday rows, labelled with the system locale's short day names and starting on its first day of the week, so each weekday keeps its row as the range moves. Week columns hold cells that widen up to a 2:1 tile, leaving empty cells for unavailable days in the loaded calendar, including its first and last days, and for the rest of the newest week. Measured zero remains a recorded day. It stays hidden for ranges that fill a single column.

• Local Sessions tab backed by sessions --json-v2; transcript paths and working directories are never rendered or opened. While the tab is visible, it rescans every 30 seconds, or at the refresh interval when that is shorter, so the CLI's active/idle state and its list of live sessions stay current even when periodic usage refresh is slower or disabled. Failed scans respect the same cadence from the failure or timeout, so reopening the popup or revisiting the tab does not repeat a failed scan immediately. The Sessions refresh button can retry immediately; changing the CLI command clears the retry cooldown. Each card shows the project, a state marked with the theme's positive color while active, the provider (or OMP for an OMP Pi-family session), and the source. The host name appears only when sessions come from more than one host. Hovering a card reveals a copy action beside its title.

• Overview providers can be limited to a chosen set of up to 3 providers, or left automatic (the first 3 eligible providers). The checkboxes recognize provider aliases and mixed-case IDs, like the panel provider selection. Disabled providers keep their saved selection without occupying one of the three slots. If more than three selected providers become available again, Overview shows the first three eligible providers in the saved provider order. Provider selection checkboxes preserve literal characters such as &, <, and > in display names, including with KDE desktop styles.

• Usage dashboard summaries for provider payloads that expose API spend, request, token, model, or dashboard fields through the CLI.

• Declarative provider detail sections from the CLI usage.details contract, including labeled rows, secondary values, and keyboard/pointer-inspectable bar/line charts. A row that carries a valid progress used/total pair, such as a Bifrost budget, also draws a thin meter under its text; the meter fills at most to the total, and rows without a valid pair keep their text alone.

• Usage rows take the widget's translated title for known providers. A provider without one uses the CLI's own English title from rateWindowLabels (such as Memory) instead of the generic Session, Weekly, or Opus; privacy mode and quotas restored after a restart keep the generic title. A restored extra window is labeled by its CLI window ID when it has one.

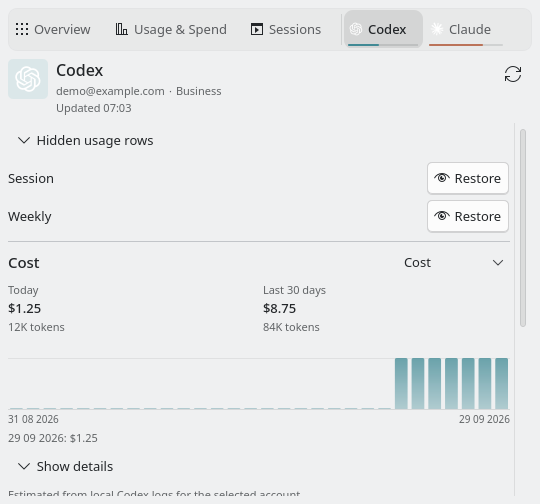

• A usage row in a provider tab can be hidden with the button that appears beside its percentage on hover or keyboard focus. Primary, secondary, and tertiary rows and extra windows with a CLI window ID can be hidden; credit rows use the Show credits and reset credits option instead. Hidden rows leave only the provider tab: fetching, notifications, the panel, and the Overview summary still use them. Expand Hidden usage rows below the provider's usage bars and select Restore beside a row to show it again immediately, including when every bar is hidden. The list includes only rows currently returned for that provider. Settings → Popup → Hidden usage rows can also restore saved rows by provider and row name, or extra window ID; Apply saves a settings-page restore. Restored quotas keep extra window IDs, so a hidden extra window stays hidden after a restart. Up to 64 rows can be saved as hidden. At that limit the hide button disappears; restore a saved row to make room for another.



• Titled provider detail sections can also be hidden with the button beside their title on hover or keyboard focus. Expand Hidden detail sections in that provider's popup to restore one using its current CLI title. The list starts collapsed for each provider and collapses again once nothing is hidden. Popup → Hidden detail sections → Restore all restores all sections for a provider when you apply settings, including sections no longer returned by the CLI. Only provider IDs and title digests are saved, never the titles themselves. Equal titles within a provider hide and restore together; reordered sections stay hidden, renamed sections appear again, and untitled sections stay visible. This display choice does not change fetching, notifications, the panel, or Overview. Privacy mode hides the restoration list along with provider details. Rows and sections hidden or restored in the popup while settings are open stay as chosen when you apply settings; the settings pages keep only their own pending restores.

Data freshness

When no provider data is available, the popup offers Configure providers with a hint to open Providers in widget settings. A confirmed empty list of enabled providers uses this setup state and still clears previous quotas and their cache. Global and provider usage errors offer Retry and Settings, with a hint to open Diagnostics for connection checks.

A command Plasma cannot run at all takes a separate state. When the shell reports that the configured command was not found or is not executable, the empty popup says CodexBar CLI not found, names the configured value, and sends you to Diagnostics to set an absolute path. It offers no Retry, because repeating a command that cannot start cannot succeed, and it does not claim that no provider is set up. Any other failure keeps the existing error and setup states. Retained providers, a refresh in flight, and the global views keep precedence over this state. Both settings actions open Plasma's standard widget settings window; select the named page there. They do not change configuration or run diagnostics automatically.

Retry starts the existing manual quota refresh, including a fresh provider list, and is disabled while a usage refresh is running. It does not scan local cost history or sessions. The existing last-known quota and timestamp rules below also apply while retrying and after another failure.

Malformed optional login-method metadata does not discard valid provider quotas or named accounts. The Codex plan label uses the same validated login method as the account details, including a valid fallback supplied by the CLI.

Failed usage refreshes keep the last valid quotas visible. Each retained provider shows Last known usage with the age of its measurement in the popup and panel tooltip; its panel icon and capsules are dimmed. Errors remain visible. A provider error with an empty or malformed message shows a generic error and follows the same quota-retention rules. A partial refresh updates healthy providers independently, and a successful refresh removes the retained-data indication. When a provider-scoped reply contains multiple records, an unreadable record does not prevent a later healthy record from updating that provider; a reply with no readable records remains an error. Retained data never generates quota, pace, reset, or status notifications, and its run-out forecasts are suppressed. If a failed quota response includes newly fetched service status, that status still updates and can trigger incident notifications independently of the retained quotas. Stale quotas preserve the previous quota, pace, and reset notification state, even when the CLI reports success with old quotas and current status. If no fresh quota has been seen, the first fresh measurement establishes that state silently. Panel and popup run-out countdowns advance from the receipt time of their own forecast. Selecting a cached account preserves that time, including in privacy mode; a later refresh for another account cannot restart its countdown. Failed refreshes stop reusing measurements older than 24 hours, and a quota measurement older than 24 hours never stamps a new snapshot as fresh. A failed refresh that reports a different account than the retained measurement does not reuse it; a failure that reports no account still does. Restored cache entries hold no account, so an early failed refresh keeps them only for a provider whose explicit account selection the cache fingerprint already covers. The existing minute timer also removes expired retained data when automatic refresh is disabled; the error remains visible and healthy providers are unaffected. Successful responses without measured quotas keep their valid credits or details even when their supplemental timestamp is old; they do not enter quota retention or expiry.

The widget automatically saves a small quota cache in its Plasma configuration. After a restart it verifies the CLI configuration fingerprint before restoring the cache, then refreshes in the background. Malformed checksum replies leave the current fingerprint and quotas intact. Restored quotas are always marked last known, even if they were saved recently. A cache is not a successful refresh. If a partial refresh finishes before that verification, its results take precedence for the providers it returned. Other cached providers are restored as last known and included when the merged snapshot is saved.

The disk cache is limited to 64 KiB of UTF-8 on both save and restore. It holds at most 64 providers and only their primary, secondary, tertiary, and up to 24 extra quota windows per provider, with only percentages, reset timestamps, measurement timestamps, identifier-shaped extra window IDs, and an opaque configuration fingerprint. It contains no account identities, credentials, provider prose, cost history, session data, or paths. Entries older than 24 hours, future-dated entries, corrupt records, and unsupported cache versions are ignored. Supplemental sections (cost, credits, detail views, token costs) are hidden while usage is stale, including after cost refreshes and history-range changes, and are not restored from disk; only the retained quotas carry the last-known indication. A missing, invalid, or future live measurement timestamp uses its original receipt time. Selecting a cached account preserves that fallback and its 24-hour retention deadline, even if the CLI timestamp has since become past; future timestamps in persisted records are rejected. The 24-hour limit is a widget policy, not a guarantee that a retained quota remains accurate throughout that period.

Changing the CLI path, provider/source override, provider configuration, or selected account invalidates the affected retained data. A per-provider reset keeps healthy providers' disk cache; a full reset clears it. Disabling all providers clears the cached quotas. A confirmed successful response without a quota removes its previous value; measured zero remains zero. Privacy mode hides identities as usual and keeps the last-known indication visible.

Providers and accounts

A failed provider-list refresh in settings keeps the last loaded list and shows an error. A successful empty list clears it.

Provider-specific editable settings depend on the official CLI contract.

• Search providers by name or ID and filter All, Enabled, or Disabled locally. Clear filters restores the list without changing selection or provider settings. Hover a row whose name or ID is cut short to read both in full.
• Provider enable/disable and setup actions write CodexBar configuration immediately; Apply and Cancel cover widget settings only. A CLI error with an empty or malformed message shows a generic failure instead of confirming that the change was saved. CLI 0.65.0 drops user provider plugin entries and their stored secrets when config disable runs. Update to CLI 0.66.0 before disabling a provider if you use user plugins.
• API key and secret prompts stay open while you type. A prompt left open for about 15 minutes closes by itself, the provider's actions unlock again, and the prompt can be reopened. Submitting near that limit still allows the full one-minute save timeout, followed by up to five seconds to stop the command.
• Account discovery and selection through codexbar usage --all-accounts. Repeated records for the same account keep the first successful read, so an earlier failed record cannot hide valid quotas. Accounts retain their original list order and distinct selection keys, including differences in spacing.
• Provider docs, dashboards, login/account links, and redacted diagnostics. The selected provider's links, settings and diagnostics share one surface above the provider list; Settings and diagnostics starts collapsed.
• With the official CLI 0.56.2 verified by this repository, the Providers page offers enable/disable, supported single API key setup, CLI command hints, and docs/dashboard/login links.
• The widget also has a renderer for the proposed provider settings descriptor. CLI 0.56.2 does not expose that contract, so source, cookie, base URL, workspace/project, region, and other descriptor-backed editors remain unavailable. They require upstream CLI support.
• Generic API key setup for Fireworks, when the selected CLI reports version 0.54.0 or later and can discover the account slug from the key.
• Fallback names, icons, and documentation links for all 90 providers in the official CodexBar 0.72.0 registry, plus colors, links, and aliases where upstream defines them; fork-only provider assets, and those for providers a later CLI retired, remain available for compatibility. Providers without bundled artwork use the theme's generic statistics icon in the panel, popup, and settings.

Costs and history

Share usage

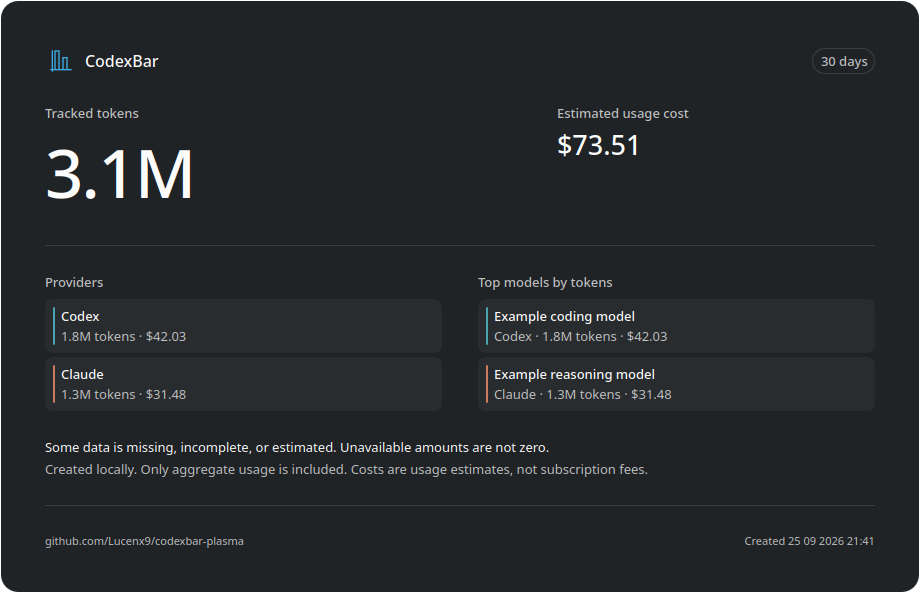

Choose Share AI usage in the Usage & Spend header to open a separate window. It uses the selected history range and freezes the currently loaded data until reopened. It does not start another CLI scan. Refresh history first for a newer snapshot; the creation timestamp is not a measurement timestamp.

Copy image places image data on the clipboard, Copy statistics copies the same aggregate figures as plain text, and Save PNG... opens the platform save picker with overwrite confirmation. Saving supports local PNG files. The image uses the Plasma colors and fonts and includes a small github.com/Lucenx9/codexbar-plasma attribution in its footer.

Totals include the loaded providers; at most eight provider rows and six models are shown, ranked by tokens, with omitted row counts. Model rows without a token count are excluded from the ranking. Currencies remain separate. Unknown values are not zero, and incomplete or estimated data retains a notice in both exports. The ordinary six-row display limit alone does not trigger that notice. Missing costs on a model's measured token days and source scans that reach their safety bound still trigger it, including in privacy mode. Costs estimate usage, not subscription fees; subscription plans are not exported.

Only aggregate fields enter the export. Account identities, projects, absolute paths embedded in model labels, raw diagnostics, and conversation content are excluded. Privacy mode keeps its model anonymization and masks unknown provider identifiers in both exports; changing that setting closes an open snapshot. Nothing is uploaded. Copying or saving is an explicit action. The exported file and clipboard content remain under your control after closing the window.

History details

• Local cost drill-down when the CLI exposes cost data.
• In the verified CLI 0.56.2 contract, Antigravity supplies token-only local history; its dollar amounts remain unavailable. Official CLI 0.62.0 adds the same token-only history for Muse Code, read from local Muse session logs with unavailable monetary fields absent. Cursor local or dashboard cost is rejected by the Linux CLI. Other provider fields, including Kiro overage, z.ai BigModel CN balance, and Cursor Grok Bot usage, use the existing generic detail, provider-cost, and extra-window paths.
• A compact provider summary compares today with the selected period. Expand details for period models, history, and projects; cost warnings remain visible, including when a failed refresh keeps the previous cost snapshot. A successful refresh clears the error. Today comes from the day of the last cost scan, so a snapshot scanned before midnight shows today as unavailable until a scan from today arrives. Malformed provider error messages use a generic warning while healthy providers update and failed providers keep their previous costs.
• Click a day in the provider chart or select it with the keyboard to see that day's model costs and tokens. Hover previews stay inside the chart, keeping the layout steady. The cost/token selector reuses the loaded data. Missing model breakdowns and truncated lists are identified explicitly.
• Local-history scans run independently from quota refreshes, automatically about once an hour; the Usage & Spend refresh button starts one immediately. Revisiting Usage & Spend refreshes history that became stale since the last scan, and a spend view left open across midnight refreshes once for the new day. Switching the Cost/Tokens metric or inspecting a day reuses the loaded data and starts no scan. Cost settings applied together start a single scan using the final executable, provider, and history range; disabling costs starts none.
• Month to date and All history ask CLI 0.67.0 or later for that calendar period (cost --period); an older CLI shows a message naming the required release, and the day ranges keep working. Choosing a day range in Usage & Spend, or a history window in the settings, returns to days. An unapplied history-window edit in General keeps its day count and day mode together if the popup changes ranges; Apply saves that pending choice. All history totals cover every recorded day. Its chart, heatmap, and history rows start at the oldest recorded day and show at most the newest 365 days; its model totals and daily average cover up to the newest 2,048 daily records.
• Token breakdowns, model summaries, recent daily spend, cost history bars, and average cost per 1M tokens, with a configurable cost history window. Recent history rows show measured zero costs and token counts alongside positive amounts; missing amounts stay omitted. The daily average stays visible for a range measured as zero, and the peak still names a day only once something was spent.
• Quota weeks in the expanded provider details split the local history by the provider's weekly quota window: the current week so far and up to three earlier ones. Each row shows its start and end; the current row ends at the upcoming reset. Right after a reset, the current week holds no full day yet and is left out until it does. The boundaries come from the weekly usage row's reset time and window length, so the list appears once a live usage refresh reports them. History is kept per day, so when the reset falls inside a day that whole day counts toward one week, and the totals are marked ≈. Unknown or missing days, and days with requests excluded from the CLI totals, make a total read "at least". Weeks reaching back before the scanned history range are left out rather than shown incomplete. If the last successful cost scan is older than today, its last day was scanned only in part, so that day and any unscanned trailing days also make the affected week read "at least". When the CLI reports that history coverage is still being established, every displayed week reads "at least" even if its recorded days have numeric amounts.
• Token, request, and point counts use the current language's singular and plural forms. Large counts retain compact notation such as 1K and 4.3B.
• Cost totals qualified as estimated, partial, or approximate from the CLI's bounded pricing coverage and provenance metadata.
• Project cost and token totals in Usage & Spend, ranked within each provider by the selected metric and using the same history range. The official CLI 0.56.2 exposes project data for Codex. Missing amounts remain unavailable; project paths and nested source records are discarded. The bounded list signals omitted projects and does not change provider or global totals.
• Cost-trust notices explain why a range is incomplete or estimated, including how many requests the CLI excluded from the displayed totals because they lacked final usage. Closing a notice suppresses the same meaning for that provider or the aggregate Spend view across refreshes and popup reopenings; a materially different warning is shown again. A changed count of excluded requests describes the same warning and stays closed.
• Recent-day history rows, model rows, and a selected day in a provider's cost details state how many incomplete requests the CLI excluded from that row's amounts. The amounts themselves stay as measured.
• A provider's cost chart, history rows, peak line, latest-day summary, and selected-day title use the system locale's short date format.

See Cost history for data bounds, selection rules, and evidence. Dashboard extras and additional history views require official CLI fields; track proposed extensions in the issue tracker.

Status and notifications

• Provider status incident badge in the panel and provider detail view. The detail view states a current incident once, in the banner below the header, which always names the severity even without a CLI description; the header badge is only a fallback for an incident with no banner text. The panel badge sits on the incident provider's own meter icon, follows provider reordering, and stays visible while a refresh runs. The standalone service-status panel element remains a fallback when no meter can carry the badge, such as hidden meters or an incident provider without meters. When meters are hidden in a vertical panel, the identity icon carries a badge only for its own provider's incident; an incident on another provider keeps the standalone fallback. Incident selection, badges, banners, and tooltips ignore a provider whose current status is unknown or has no active incident. When a refresh omits status, a previously retained outage is hidden; this is not evidence of recovery. Current status can still report an incident when quota fetching fails.
• Optional quota warning markers on usage bars.
• Optional Plasma notifications for provider status incidents, configurable quota crossings, predicted quota exhaustion from CLI pace data, and when a heavily used limit resets back to empty. A temporarily omitted usage window preserves its notification baseline: returning at the same threshold does not repeat a warning, and a previously armed reset can still be reported. A status page that briefly cannot be reached does not announce an ongoing incident again once it answers. Notification text is shown literally: markup in provider or status text never becomes a link, emphasis, or an image.
• Clicking the available-update notification opens that release's page on GitHub, addressed from the tag the updater announced. The notification stays non-clickable when the release address is unknown or the installed notify-send predates notification actions.

Settings

• Seven settings pages: General, Providers, Panel, Popup, Notifications, AI Insights (Beta), and Diagnostics. CLI path and provider/source overrides sit beside redacted diagnostics; quota thresholds sit beside their alerts. Popup lists hidden usage rows under Popup and groups provider order and Overview providers under Providers; Diagnostics runs redacted diagnostics from its Provider diagnostics section. Explanatory text is set in small secondary type below the control it describes, and dependent options are indented under the option they need. Diagnostics also reports the widget version, and, after Check versions, the CLI version and the absolute command the shell resolved. Those three lines are what a bug report needs; the probe runs only when asked, and a changed command path clears the previous result. Popup and Notifications keep their text and controls still while the page opens, including while the Popup provider list arrives.
• Panel starts with the preview, side-by-side Standard/Minimal choices, and provider meters. Text and controls keep their horizontal position as the page opens. Additional information contains the selected provider's name, usage text, credit balance, and the monochrome preset. Its closed summary lists enabled information. Text format appears only when usage text is enabled; hiding controls preserves their selected values. These additions work in horizontal panels; meters also work in vertical panels. With several panel providers the panel may not have room for all of them and drops the least important first, as described above.
• Quota, order and visibility expands the quota selector, element order, visibility conditions, and automatic provider selection. It starts collapsed whenever the page opens. Its summary lists non-default quota/order choices, configured conditions, and automatic selection even while collapsed. Opening or closing it never changes saved or pending preferences.
• A live Panel preview uses example data and the actual panel renderer. Try normal usage, near-limit usage, a service incident, or missing data before applying changes. It stays above the scrolling options, including quota, order, and visibility controls. The preview never fetches usage or changes saved settings. After Panel providers loads, the preview uses the enabled provider names with synthetic measurements. Before that list is available, it uses the fixed Codex and Claude examples.
• Optional General → Hide personal information hides account, organization, project, model and session names in the widget, its tooltips and new notifications. Free-form provider details are omitted; session copy actions are disabled. Stored data, existing clipboard contents and already-delivered notifications are unchanged. Provider setup and Diagnostics remain administrative surfaces.
• General → Refresh when opening the popup, enabled by default, refreshes stale quotas using the selected refresh interval, or five minutes with periodic refresh off. Quotas newer than that window are reused, so opening the popup repeatedly does not repeat the command. It does not scan local cost history; failed attempts use the same cooldown. The Usage & Spend tab refreshes its own stale history when revisited and across midnight. Turn it off to refresh only on the periodic interval.
• Popup independently controls pace text/markers, credits/reset credits, and additional provider details/billing dashboards. These are visible by default; changing them does not refetch data or change panel metrics or alerts.
• Popup → Show reset times as clock time names the weekday and time for a reset within the next six days, and the date and time for one further away, such as a monthly limit or a weekly limit that just reset. Day and month names and the 12- or 24-hour clock follow the regional format in Plasma's system settings, as does the time in "Updated" labels.
• A global, cancelable Restore all defaults action for user-facing widget settings; provider accounts and CodexBar CLI configuration are left intact.
• Usage refresh choices: no periodic refresh, 1 min, 2 min, 5 min, 15 min, or a custom interval. Provider service status remains opt-in.
• Configurable order for the provider identity, service status, usage text, and provider meters shown in the panel.
• Check for widget updates, notify when an update is available, and opt in to silent automatic widget installation. The update notification opens the release page on GitHub when clicked, where supported.

CLI release checks and installed versions

In General → CLI updates, Check CLI releases now compares the selected executable's --version with the latest stable official GitHub release. The manual check works even when daily checks are disabled. Daily checks are opt-in, run independently of quota refreshes, and retry failures after one hour. CLI release notifications have their own switch, respect the global notification setting and privacy mode, and announce each version once per widget instance. Clicking a notification opens the corresponding official release page where notification actions are supported.

An upstream release may precede its availability in AUR or a distribution repository. The widget identifies positive package ownership through pacman, dpkg, RPM, or APK, and recognizes a Homebrew formula by its installed prefix and receipt. A pacman-owned package is not automatically labeled AUR. Unknown origins, custom wrappers, manual downloads, and source builds remain external. Update external copies with the original installation method; the widget does not run package managers or request privileges. The separate managed-copy option below downloads official binaries only after an explicit install action.

Diagnostics → Versions → Check versions remains an offline probe. It reports the widget version, installed CLI version, resolved command path, and installation guidance using the same local probe as the release checker. It also reports the PATH-resolved system CLI version whenever it differs from the selected command, so drift between a managed copy and a package-manager installation stays visible. Editing the command path clears the previous result. Prerelease or custom version strings are not silently treated as older stable versions. Network errors do not affect quota fetching or replace the installed version with a guessed value.

Managed CLI

The quick terminal installer can install or reuse the same private copy before you add the widget. It leaves widget settings unchanged: select Use managed CLI here, then Apply. The installer preserves any CLI on PATH unless you explicitly pass --with-cli, which creates or reuses the separate private copy without replacing that CLI.

General → Managed CLI → Install and select managed CLI installs the latest stable official Linux release under $XDG_DATA_HOME/codexbar-plasma/cli, falling back to ~/.local/share/codexbar-plasma/cli. When the selected command is a working external copy, the widget first asks for confirmation: installing keeps that copy for outside use but creates a second private copy, and later updates through the original method no longer affect the widget. Installation happens immediately; Apply or OK saves its current/codexbar path as the widget command. Cancel leaves the downloaded copy unused and preserves the saved command. If a managed copy already exists, Use managed CLI selects it offline without checking GitHub or downloading again. System, AUR, other package-manager copies, and provider configuration are unchanged. To return to an external copy, enter its path or codexbar in Diagnostics and apply. Check versions identifies the managed copy offline.

Update now changes the managed copy immediately. The optional Automatically update the managed CLI daily setting is off by default and takes effect after applying settings. It operates only while that exact managed path is selected, independently of release-check notifications. Selecting another command dims the setting once it is off, and leaves it switchable while it is still on. Widget instances using the same user data directory share one installation, lock and daily attempt timestamp. Any instance with automatic updates enabled can update that shared copy. Failed automatic attempts retry the next day; manual actions bypass the daily interval. An installation already in progress can finish after closing settings or disabling automatic updates. No package-manager command or privilege prompt is used.

Downloads select the official x86_64 or aarch64 asset for the running glibc or musl environment. Unknown environments fail without changing the active copy. Both the GitHub asset SHA-256 digest and published checksum must match; only expected archive entries are accepted. A staged --version probe must report the requested stable version before an atomic symlink switch. Unlike widget releases, official CLI 0.62.0 releases are not marked immutable, so CLI downloads use pinned tag/asset URLs and digest verification without requiring that flag. A download, extraction or compatibility failure leaves the active copy available. The status names which kind of failure occurred: a refused download that failed verification, an unreachable release server, or a system with no official build. A repeated verification failure is worth investigating rather than retrying, because the published digest and checksum already agreed before the download. Reasons stay generic; command output, paths and remote text are never shown.

Restore previous version switches back immediately and prevents automatic reinstallation of the replaced version. A newer release remains eligible; Update now explicitly permits reinstalling the skipped version. The current and previous copies are retained. Other versions are removed by the next update check once they have been inactive for an hour, so recent CLI processes can finish using their resource bundles without old releases filling the disk. A restored CLI does not roll back upstream provider configuration changes.

AI Insights

AI Insights is an optional beta card that asks a language model for a short explanation of your current usage: a quota likely to run out before its reset, a notable change in spending or tokens between the last two complete weeks, or a notable difference between providers. It explains facts the widget has already measured; forecasts come from the CLI pace data, and comparisons appear only when the history supports them. It is off by default. While it is off, the widget builds no AI data, starts no AI process, contacts no AI service, and shows no card. The AI Insights reference documents the data and request contracts.

Enable it in AI Insights settings, choose a provider and a model, and use Test connection to check the service and list available models. It sends no generation request, so it also says whether the chosen model is in that list rather than claiming it will answer; OpenRouter's Zero Data Retention routing is checked only when an insight is generated. Changing the model clears the previous test result. Disabling AI Insights on this settings page retires any pending connection test or wallet operation and ignores its late reply. The card appears at the end of Overview. Without an Overview tab (one provider, or a fixed provider in Diagnostics), it appears in the provider view instead. The card's Generate insight button creates the first insight; afterwards the wand button in its header refreshes it. The Overview refresh button still refreshes usage only. The card shows the summary with the provider, model, and the insight's age; Show details expands the highlights.

• Ollama runs models on your computer. The default address is http://localhost:11434 and needs no API key. Install a model first, for example ollama pull qwen3:4b. Models of about 4B parameters or more work best; very small models, such as 1.5B, often ignore the interface language and misstate figures, and with many providers even 4B models can drift into English. A cloud model or a larger local model is the reliable choice. Thinking is turned off, and the model is unloaded from memory as soon as the insight is written. A remote Ollama service must use https://, and the settings page states that usage statistics are sent to it.
• OpenRouter needs an API key and credits. Only models that support structured output are listed. Requests never use providers that may collect data for training, and Use only Zero Data Retention endpoints, on by default, restricts routing further; some models then have no endpoint. Requests are billed at the price of the chosen model. Reasoning is turned off for models that support it, since it is billed and adds nothing to a short summary. Batch-only variants are not listed, and requests appear as CodexBar Plasma in OpenRouter's logs.
• OpenAI needs an API platform key with API credits. A ChatGPT subscription does not include API credits. Requests set store: false, so OpenAI does not keep them as stored completions.

Set API key... opens a password dialog (it requires kdialog) and stores the key in the system wallet (KWallet through Secret Service, which also needs secret-tool). The key is saved immediately, separately from any key in the CodexBar CLI configuration, and is never written to widget settings. Remove deletes it from the wallet. Nothing falls back to plain-text storage.

Insights use the language of the widget interface: the translation Plasma actually shows, not the region, number format, provider, or model. An English interface produces English insights, an Italian one Italian insights, and a language without a widget translation uses English, matching the displayed text. Provider names, model names, and units stay unchanged. An insight generated in another language, or with another provider, model, address, or privacy setting, is not shown as current; generating a new one is up to you.

Only aggregated statistics leave the device when a cloud provider is selected: provider identifiers, quota percentages, window lengths, time to reset, CLI pace forecasts, service-incident severity, and last-week versus previous-week spend and token totals per provider and currency. Account names, emails, organizations, projects, paths, sessions, prompts, model names from cost history, and provider messages are never sent. Only providers with current measurements are sent; one retained after a failed refresh, or without data, is left out. Weekly spending comparisons require cost history already loaded in Usage & Spend and scanned today; generating an insight never starts a cost scan.

Frequency defaults to Only on request. Every 6 hours, Every 12 hours, and Daily generate in the background at most once per interval, counted from the last attempt, including a failed one, and from the last successful insight. Usage refreshes, opening the popup, and language changes never make a request due by themselves, and a plasmashell restart keeps both the interval and a provider's rate limit. The last insight is saved with its time, provider, model, and language, and Clear beside Saved insight removes it. An insight older than the interval (a day in manual mode), or followed by a failed attempt, is labeled out of date beside its age.

When a provider is unavailable, the card keeps usage data untouched and shows a short reason, such as Ollama not running, a rejected key, missing credits, a rate limit, an unsupported model, or an unreadable answer. Automatic generation then waits for the next interval, because a failed or timed-out request may still have been billed, and at least until the provider's retry time for a rate limit. The generate button can retry at once, except during a provider's rate limit, which it then reports. Turn Enable AI Insights off to stop all AI activity; the saved insight stays hidden until you enable it again or clear it.

Default settings

The defaults keep quota usage visible and current, and reserve notifications for quota warnings and available updates. Opening the popup refreshes quotas that are already older than the refresh interval, so a resumed session does not present old measurements as current. Percentages show used quota, matching the 80% warning and 95% critical thresholds. Reset notifications are off until enabled.

These values apply to new widgets and settings without a stored override. Existing stored choices take precedence. General → Restore all defaults prepares these values for an existing widget; select Apply or OK to save them, or Cancel to keep its settings. Provider accounts and CLI configuration are not reset.
